Bspt X Npt Nipple

Description & Features

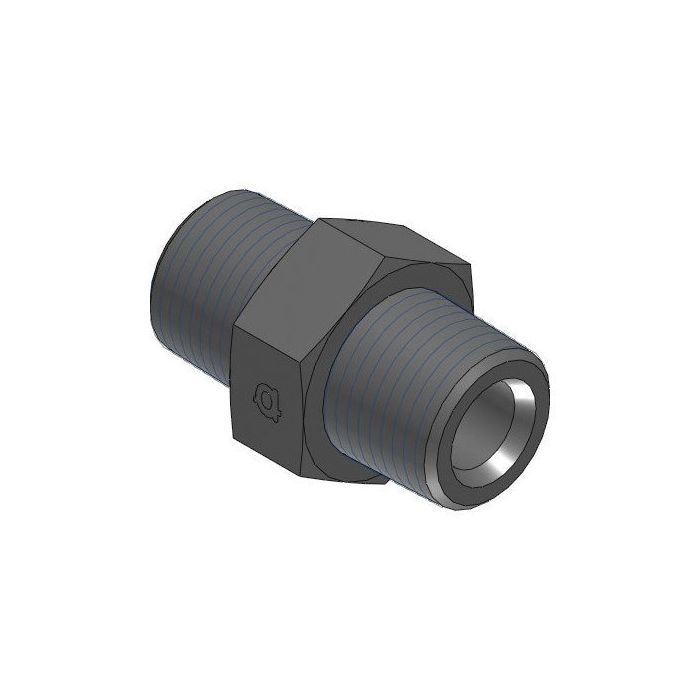

The ADAPTALL AMERICA Bspt X Npt Nipple is engineered for specific industry applications. Featuring a robust steel construction this straight-shaped component ensures durability and reliability in demanding environments. One end features a 1" Male Bspt connection with an R 1 - 11 callout while the other end has a 1" Male Npt connection with a 1 - 11.5 NPTF callout.

With a length of 64.7mm and a width of 35mm this nipple fits seamlessly within industry standards ensuring a precise and secure fit. Its straightforward design eliminates the need for additional adjustments or calibrations providing a reliable solution for various industrial uses.

MPN: 9008-16-16

Supplier Part Number: 9008-16-16

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPT
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1, ISO 7-1
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Nipple
Hex Size
41 mm
Material
Steel
Material Construction
Carbon Steel
Series
9008 Series
Thread Size
1-11 x 1-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Bspt X Npt Nipple

9008-02-02

1/8 in

1/8 in

1/8-27 x G1/8-28

Bspt X Npt Nipple

9008-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

Bspt X Npt Nipple

9008-06-06

3/8 in

3/8 in

3/8-19 x 3/8-18

Bspt X Npt Nipple

9008-08-08

1/2 in

1/2 in

1/2-14

Bspt X Npt Nipple

9008-12-12

3/4 in

3/4 in

3/4-14

Bspt X Npt Nipple

9008-24-24

1-1/2 in

1-1/2 in

1-1/2-11 x 1-1/2-11-1/2

Bspt X Npt Nipple

9008-32-32

2 in

2 in

2-11 x 2-11-1/2

Bspt X Npt Nipple

9008-40-40

2-1/2 in

2-1/2 in

2-1/2-11 x 2-1/2-8

Product Questions & Answers (1)

Question by: Hugh M on Nov 19, 2025, 6:24 AM
got a pump port that’s 1 inch BSPT and the hose side is 1 inch NPTF. is this the straight nipple that bridges those two?
Answer by: Customer Support on Nov 21, 2025, 6:43 AM
It connects a 1 inch male BSPT on one end, called out as R 1 - 11, to a 1 inch male NPT connection on the other end with a 1 - 11.5 NPTF callout, and it is a straight steel nipple.
