Bspt X Npt Nipple

Description & Features

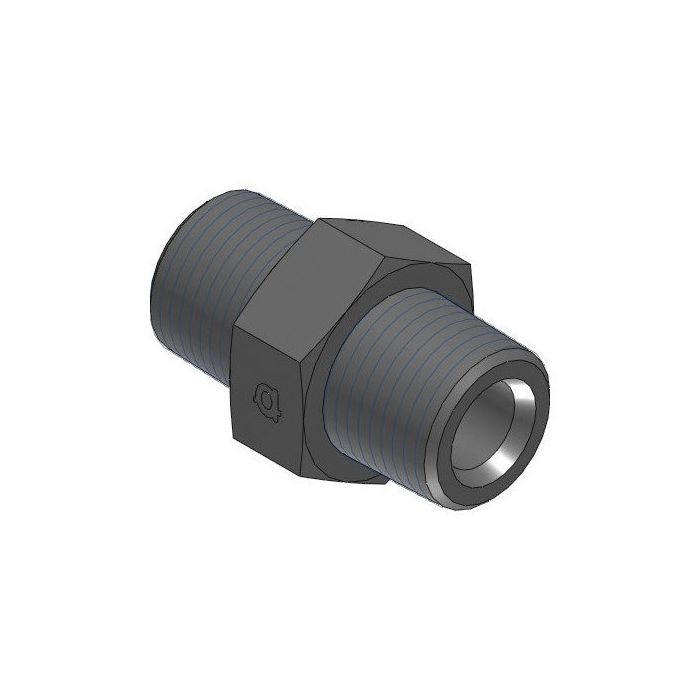

This Adaptall steel nipple fitting features a straight shape and connects BSPT to NPT. It adapts a 1-1/2" male BSPT (R 1-1/2 - 11) connection to a 1-1/2" male NPT (1-1/2 - 11.5 NPTF) connection.

The Adaptall Bspt X Npt Nipple has a 51mm wrench flat and an overall length of 80.8mm.

SKU: 9008-24-24

Supplier Part Number (MPN): 9008-24-24

Specifications

Brand
adapt-all
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, MNPT
Connection Type 1
Male BSPT
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN EN 10226-1, ISO 7-1
Dimensions
80 mm L
Finish
Zinc-Plated
Fitting Type
Nipple
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
9008 Series
Thread Size
1-1/2-11 x 1-1/2-11-1/2

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Bspt X Npt Nipple

9008-02-02

1/8 in

1/8 in

1/8-27 x G1/8-28

Bspt X Npt Nipple

9008-04-04

1/4 in

1/4 in

1/4-19 x 1/4-18

Bspt X Npt Nipple

9008-06-06

3/8 in

3/8 in

3/8-19 x 3/8-18

Bspt X Npt Nipple

9008-08-08

1/2 in

1/2 in

1/2-14

Bspt X Npt Nipple

9008-12-12

3/4 in

3/4 in

3/4-14

Bspt X Npt Nipple

9008-16-16

1 in

1 in

1-11 x 1-11-1/2

Bspt X Npt Nipple

9008-32-32

2 in

2 in

2-11 x 2-11-1/2

Bspt X Npt Nipple

9008-40-40

2-1/2 in

2-1/2 in

2-1/2-11 x 2-1/2-8

Product Questions & Answers (3)

Question by: Duane M on Jul 22, 2025, 4:09 PM
Got a piece of equipment running a BSPT port but everything else on the line is NPT, will this nipple get me sorted out without having to swap fittings on both ends?
Answer by: Customer Support on Jul 24, 2025, 6:11 AM
That's exactly the situation this fitting handles. One end is a 1-1/2" male BSPT threaded R 1-1/2 - 11, and the other is a 1-1/2" male NPT at 1-1/2 - 11.5 NPTF. Both sides are the same nominal size, so you're bridging two different thread standards without stepping up or down in diameter. Steel construction, straight profile, and a 51mm wrench flat give you enough to work with during installation.
Question by: Harold M on May 8, 2025, 5:17 PM
What's the wrench size on this nipple fitting? Just need to make sure I have the right tools handy.
Answer by: Customer Support on May 10, 2025, 6:24 AM
The wrench flat measures 51mm, so you'll need a wrench that size to tighten it properly.
Question by: Pete W on Oct 12, 2025, 6:00 AM
got a valve with a 1-1/2" BSPT port and my hose end is 1-1/2" NPTF. is this the right nipple to marry those up
Answer by: Customer Support on Oct 13, 2025, 4:37 PM
For that exact thread changeover, this nipple is the match. One end is 1-1/2 inch male BSPT (R 1-1/2 - 11) and the other end is 1-1/2 inch male NPTF (1-1/2 - 11.5).
