Male Jic X Fem. Bspp Fixed

Ask A Question

Description & Features

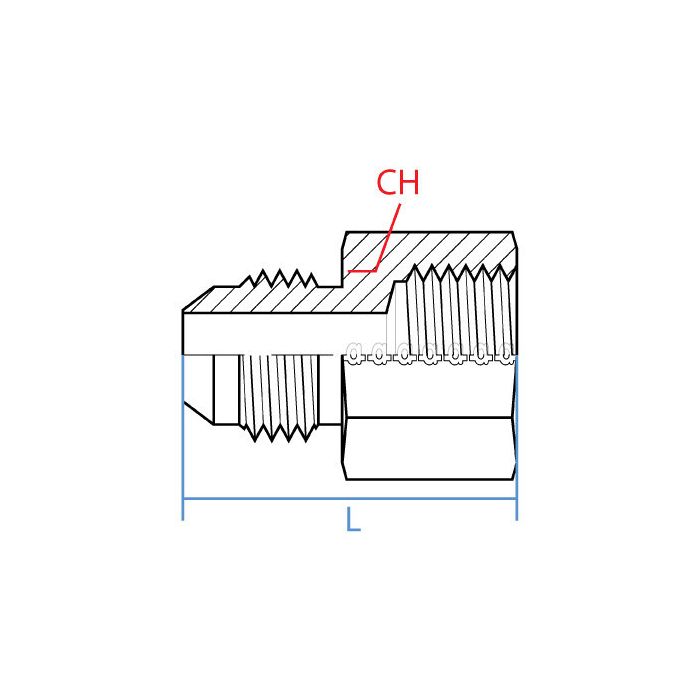

Crafted from durable steel, this Male JIC X Fem. BSPP Fixed adapter provides a reliable solution for industrial hydraulic applications. Featuring a straight design, it offers a seamless connection between a 3/4 - 16 UNF male JIC fitting and a G 1/2 - 14 female BSPP fitting. The adapter's compact dimensions, with a width of 27mm and a length of 43.2mm, ensure it fits neatly into hydraulic systems while maintaining robust performance.

This versatile adapter is ideal for connecting components within hydraulic systems, ensuring leak-proof functionality and high compatibility. The precision-engineered threads facilitate easy installation and secure connections, making it a valuable component for professionals seeking efficiency and reliability in demanding environments.

SKU: 9009-08-08

Supplier Part Number (MPN): 9009-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
44 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
24 mm
Material
Steel
Material Construction
Carbon Steel
Series
9009 Series
Thread Size
3/4-16 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Billy C on Oct 12, 2025, 10:32 AM
got a hydraulic line running JIC on one end and BSPP on the other, this the right piece to bridge that gap?
Answer by: Customer Support on Oct 14, 2025, 6:44 AM
For a 3/4-16 UNF male JIC side connecting to a G 1/2-14 female BSPP port, yes, that's exactly what this adapter is built to handle. Both sides are 1/2" nominal, so the sizing lines up. Steel construction keeps it solid under the kind of pressure and vibration you'd expect in a working hydraulic system, and the straight profile makes it straightforward to thread in without needing extra clearance around it.
Question by: Keith W on Nov 29, 2025, 1:30 PM
Will this fitting work with a standard JIC flared connection?
Answer by: Customer Support on Nov 30, 2025, 8:19 PM
Yes, this adapter features a 3/4 - 16 UNF male JIC fitting, which is a standard flared connection. It's designed to mate with a corresponding female JIC flare.
Question by: Warren R on May 14, 2025, 1:10 PM
got a hose end that’s 3/4-16 UNF JIC male and the port on the other side is G 1/2-14 BSPP female. is this the right fixed straight adapter to marry those up
Answer by: Customer Support on May 16, 2025, 12:36 PM
Match the threads on both ends and it lines up: Side 1 is a 3/4 - 16 UNF male JIC, and Side 2 is a G 1/2 - 14 female BSPP. It is a straight, fixed steel adapter with both ends called out as 1/2 inch size.
