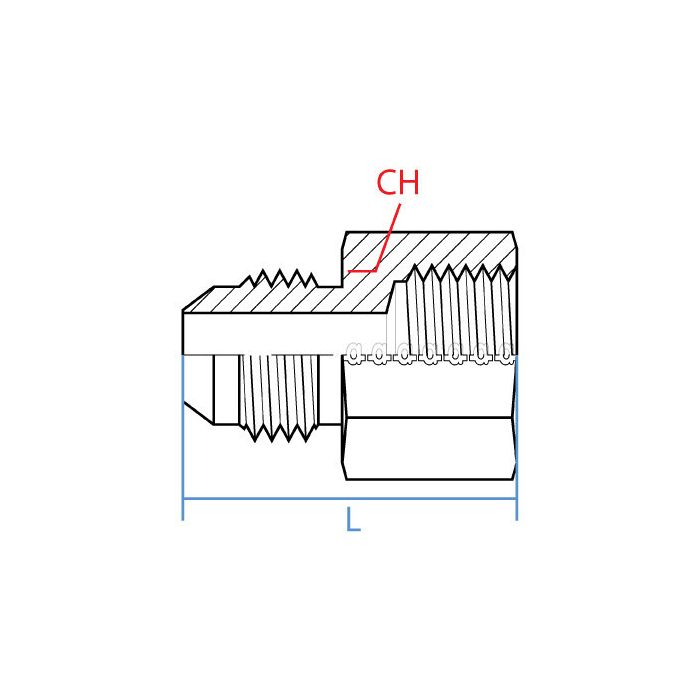

main product photo

Male Jic X Fem. Bspp Fixed

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this 3/4" adapter connects a male JIC (1-1/16-12 UN) fitting on one end to a female BSPP (G 3/4-14) fixed port on the other. The fixed female BSPP end eliminates the need for additional sealing components at the port connection, making it well suited for hydraulic circuits that combine SAE and British Standard thread standards.

The Male JIC X Fem. BSPP Fixed is an Adaptall product, measuring 52.8mm in length with a 35mm wrench width. Its straight geometry suits inline installations where a direct thread-to-thread transition is required between JIC and BSPP connections.

SKU: 9009-12-12

Supplier Part Number (MPN): 9009-12-12

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 mm
Material
Steel
Material Construction
Carbon Steel
Series
9009 Series
Thread Size
1-1/16-12 x 3/4-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Kurt H on Feb 19, 2026, 9:06 PM
What size wrench do I need for this fitting? Just wanna make sure I got the right one before I start wrenching on it.
Answer by: Customer Support on Feb 21, 2026, 7:32 AM
This adapter needs a 35mm wrench. That should let you get it tightened up properly.
Question by: Dwight R on Nov 12, 2025, 12:10 PM
Got a machine here running a mix of SAE and British Standard fittings, would this adapter work as a straight inline connection between a JIC male and a BSPP female port without needing extra sealing parts?
Answer by: Customer Support on Nov 14, 2025, 6:55 AM
That fixed female BSPP end handles the port seal on its own, so you won't need to add any separate sealing components on that side. The male JIC end threads in at 1-1/16-12 UN, and the BSPP side picks up a G 3/4-14 connection. Straight geometry means it drops right into an inline run without any offset. Good fit for exactly the kind of mixed-standard circuit you're describing.
Question by: Ralph R on Jul 3, 2025, 2:00 PM
got a hose end that’s 1-1/16-12 JIC male, will this adapter mate up to it and still let me screw into a G 3/4-14 port?
Answer by: Customer Support on Jul 4, 2025, 8:40 PM
On the JIC side you get a 3/4 inch male with 1-1/16-12 UN threads, and the other end is a 3/4 inch female BSPP fixed port connection with G 3/4-14 threads, so it is meant to bridge those two thread standards in a straight, inline setup.
