Male Jic X Fem. Bspp Fixed

Description & Features

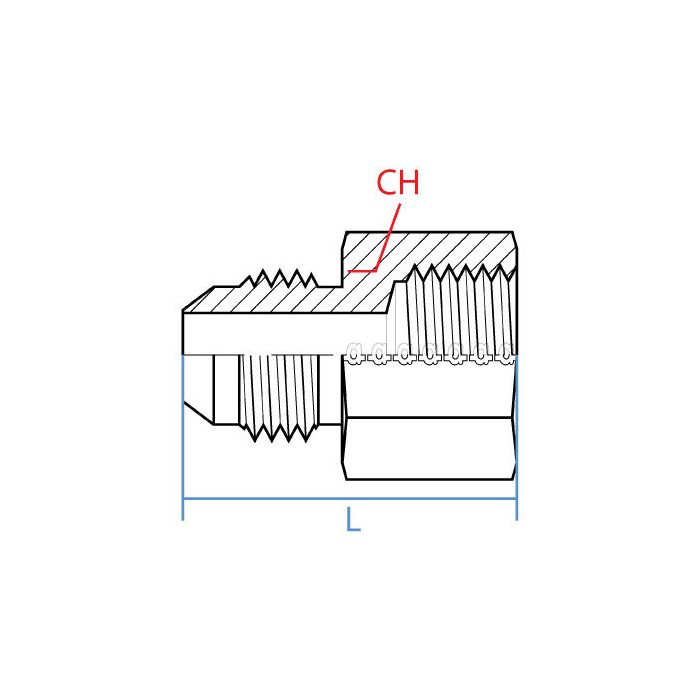

This steel Adaptall fitting features a straight shape and facilitates secure connections between JIC and Bspp systems. On one side, it has a 1" male JIC end with a 1-5/16 - 12 UN callout, while the other side features a 1" female Bspp end with a G 1 - 11 callout. The Adaptall Ch Width measures 41mm, and the Adaptall L Length is 54.9mm.

The Male Jic X Fem. Bspp Fixed fitting is suitable for various hydraulic applications.

SKU: 9009-16-16

Supplier Part Number (MPN): 9009-16-16

Specifications

Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514	Dimensions 55 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 41 mm	Material Steel	Material Construction Carbon Steel	Series 9009 Series	Thread Size 1-3/16-12 x 1-11

Product Questions & Answers (3)

Question by: Ronnie B on Feb 6, 2026, 1:19 PM

What thread specs am I working with on both ends of this fitting?

Answer by: Customer Support on Feb 7, 2026, 7:02 PM

One end is a 1" male JIC with a 1-5/16 - 12 UN thread, and the other is a 1" female BSPP running a G 1 - 11 callout. Both sides are 1" nominal size, so you're bridging a JIC system on one end to a BSPP connection on the other. Straight body, no swivel on the BSPP side, so keep that in mind when planning your line routing.

Question by: Brent P on May 19, 2025, 4:54 PM

i’ve got a hose end that’s 1 inch male JIC, will this adaptall piece mate up to it and go into a 1 inch female BSPP port?

Answer by: Customer Support on May 20, 2025, 9:23 PM

On the JIC side you are looking at a 1 inch male with a 1-5/16 - 12 UN callout, and the other end is a 1 inch female BSPP with a G 1 - 11 callout. If those are the thread callouts you need on each side, this straight steel fitting is the right match.

Question by: Vince M on Nov 2, 2025, 11:42 AM

I need a fitting to go from JIC to BSPP, is this the right one?

Answer by: Customer Support on Nov 4, 2025, 6:49 AM

This Adaptall fitting is specifically made to connect JIC to BSPP systems, with a male JIC on one side and a female BSPP on the other, both 1" size.
