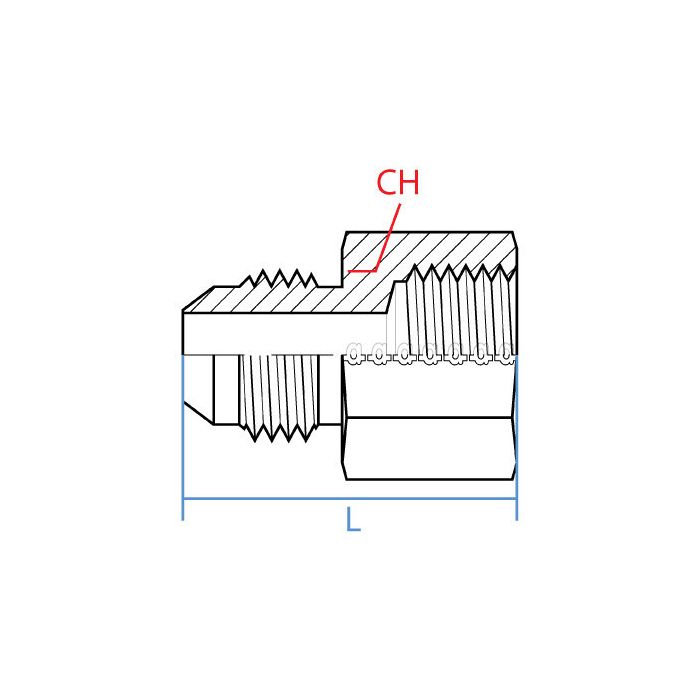

Male Jic X Fem. Bspp Fixed

Ask A Question

Description & Features

Constructed from durable steel, this straight Male Jic X Fem. Bspp Fixed adapter is engineered for robust industrial applications requiring secure connections. The adapter features a 1-7/8 - 12 UN male JIC thread on one side and a G 1-1/2 - 11 female BSPP thread on the other, both with a size of 1-1/2". With precise dimensions of 57.5mm in width and 67.3mm in length, it ensures a reliable fit for demanding environments.

Designed by Adaptall, this adapter is ideal for projects where compatibility with both JIC and BSPP thread types is essential. Its steel construction provides excellent strength and resistance to wear, making it suitable for high-pressure systems. The fixed connection type ensures stability and minimizes the risk of leaks in hydraulic setups.

SKU: 9009-24-24

Supplier Part Number (MPN): 9009-24-24

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
65 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
55 mm
Material
Steel
Material Construction
Carbon Steel
Series
9009 Series
Thread Size
1-7/8-12 x G1-1/2-11

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Troy E on Apr 12, 2025, 12:44 PM
trying to hook up a jic hose end to a bspp port. are the threads on this one 1-7/8-12 UN on the male side and G 1-1/2-11 on the female side?
Answer by: Customer Support on Apr 14, 2025, 7:52 AM
On this adapter, side 1 is a male JIC thread with a 1-7/8 - 12 UN callout in a 1-1/2 inch size, and side 2 is a female BSPP thread with a G 1-1/2 - 11 callout, also 1-1/2 inch size.
Question by: Vince E on May 24, 2025, 9:27 AM
What kind of steel is this adapter made from?
Answer by: Customer Support on May 25, 2025, 6:00 PM
Constructed from durable steel, this adapter is designed to provide excellent strength and resistance to wear, making it suitable for high-pressure systems.
Question by: Terry T on May 14, 2025, 9:21 PM
Got a system running BSPP fittings on the hydraulic lines, but the pump side came threaded JIC. This adapter gonna bridge that gap without a bunch of extra pieces in the line?
Answer by: Customer Support on May 16, 2025, 6:51 AM
Yeah, that's exactly the kind of situation this fitting handles. One end is a 1-7/8-12 UN male JIC thread, the other is a G 1-1/2-11 female BSPP, both sized at 1-1/2 inches. Straight through, no funny angles or extra couplings needed. Steel construction keeps it solid under load, and the fixed connection type means once it's made up, it stays put without rotating or shifting on you.
