Bspt X Bspt Nipple

Description & Features

This straight steel Bspt X Bspt Nipple features Adaptall Side 1 and Side 2 with R 1/4 - 19 callouts, 1/4" size, and male gender.

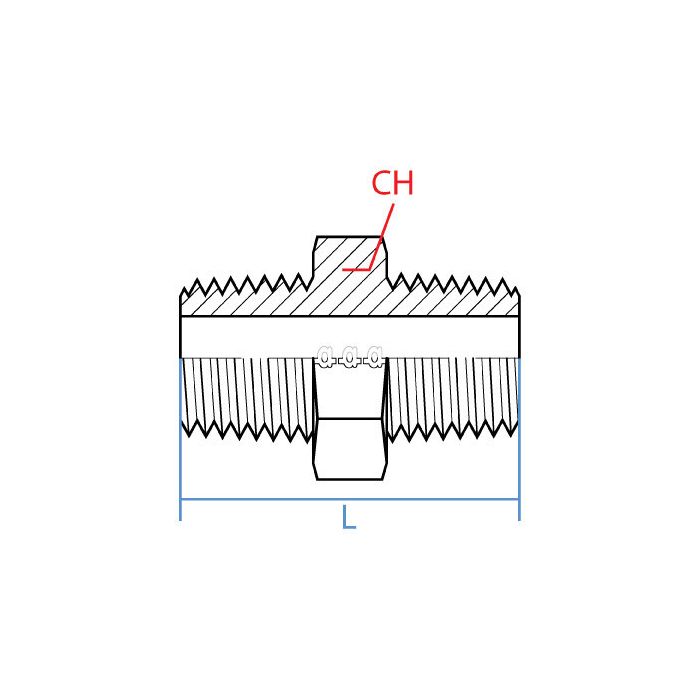

It has a 14mm Adaptall Ch Width and a 35.6mm Adaptall L Length.

SKU: 9010-04-04

Supplier Part Number (MPN): 9010-04-04

Alternate Part Numbers: C1ZX11

Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1	Dimensions 37 mm L	Finish Zinc-Plated	Fitting Type Nipple	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Series 9010 Series	Thread Size 1/4-19

Question by: Rusty S on Apr 27, 2025, 5:35 PM

need a straight nipple with 1/4 BSPT male on both ends, is that what this is?

Answer by: Customer Support on Apr 29, 2025, 5:30 PM

For a straight male to male adapter, this one matches BSPT on both sides with R 1/4 - 19 threads and a 1/4 inch size on each end.
