Bspt X Bspt Nipple

Ask A Question

Description & Features

The Bspt X Bspt Nipple is crafted from high-quality steel, ensuring durability in demanding industrial environments. Designed with a straight shape, it features two BSPT male ends with different sizes. The first side has a callout of R 3/4 - 14 and a size of 3/4", while the second side has a callout of R 1/2 - 14 and a size of 1/2". This versatile nipple serves as a reliable connector in hydraulic systems requiring precise BSPT threading.

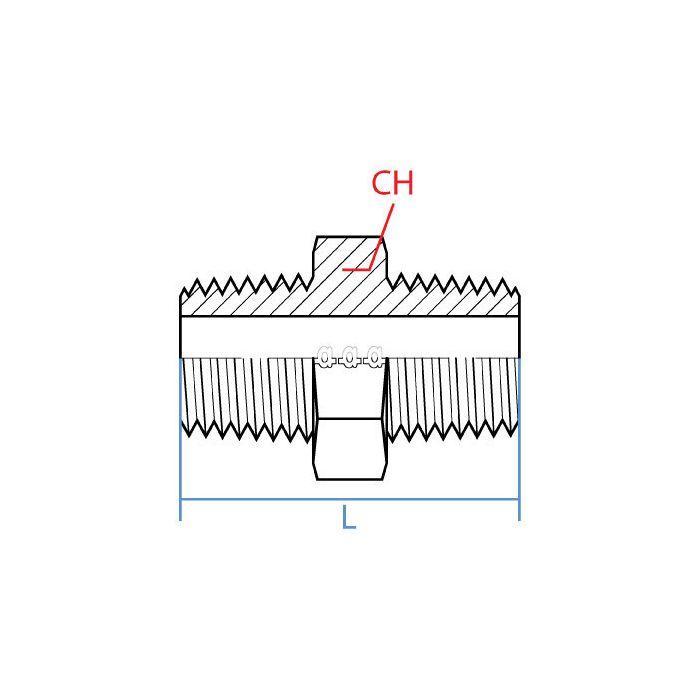

Measuring 51.6mm in length and 27mm across the width of its flats, this part is engineered by Adaptall, a trusted brand known for its precision and quality. The robust construction and accurate threading make it ideal for various industrial applications, ensuring leak-proof connections and seamless integration into existing systems.

SKU: 9010-12-08

Supplier Part Number (MPN): 9010-12-08

Specifications

Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Type
Male BSP
Connection Type 1
Male BSPT
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1
Dimensions
48 mm L
Finish
Zinc-Plated
Fitting Type
Nipple
Material
Steel
Material Construction
Carbon Steel
Series
9010 Series
Thread Size
3/4-14 x 1/2-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Rick S on Sep 14, 2025, 8:51 PM
what's the thread size on each end of this nipple? trying to figure out if it'll step down from 3/4 to 1/2 like I need
Answer by: Customer Support on Sep 16, 2025, 7:56 AM
One end runs R 3/4-14 BSPT and the other is R 1/2-14 BSPT, so yes, it does step down between those two sizes. Both ends are male, and the overall length comes in at 51.6mm with a 27mm flat width. If your system already runs BSPT threading on both connection points, this should drop right in.
Question by: Pete H on Sep 3, 2025, 2:45 PM
got a 3/4 BSPT port on one side and a 1/2 BSPT on the other. is this the straight nipple that steps down between those two?
Answer by: Customer Support on Sep 4, 2025, 6:46 PM
Yes, it is a straight steel BSPT male to BSPT male nipple with two different ends. Side 1 is R 3/4 - 14 (3/4 inch male BSPT) and side 2 is R 1/2 - 14 (1/2 inch male BSPT), so it’s meant to connect or adapt between those two BSPT sizes.
