Bspt X Bspt Nipple

Description & Features

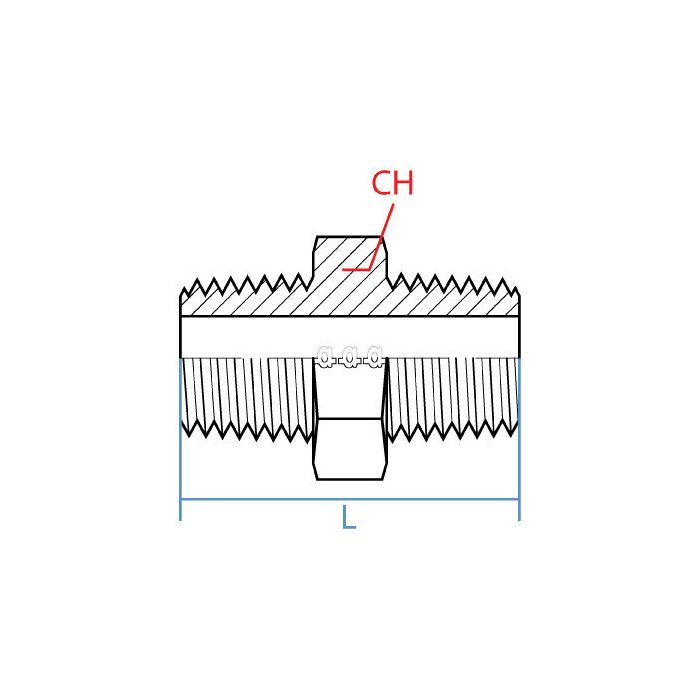

This straight steel nipple fitting features male BSPT (R) threads on both ends. Each side measures 3/4" with a R 3/4 - 14 callout, ensuring secure connections in hydraulic systems.

The Adaptall Bspt X Bspt Nipple has a length of 45.7mm, and the width across the flats measures 27mm.

SKU: 9010-12-12

Supplier Part Number (MPN): 9010-12-12

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male BSP	Connection Type 1 Male BSPT	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1	Dimensions 50 mm L	Finish Zinc-Plated	Fitting Type Nipple	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9010 Series	Thread Size 3/4-14

Product Questions & Answers (1)

Question by: Phil G on Jul 14, 2025, 1:20 PM

Will this nipple fitting work for hooking up some hydraulic lines on my tractor?

Answer by: Customer Support on Jul 15, 2025, 4:03 PM

This straight steel nipple fitting is designed for secure connections in hydraulic systems, featuring male BSPT (R) threads on both ends, each measuring 3/4" with a R 3/4 - 14 callout. Make sure your tractor's lines are compatible with those specifications.
