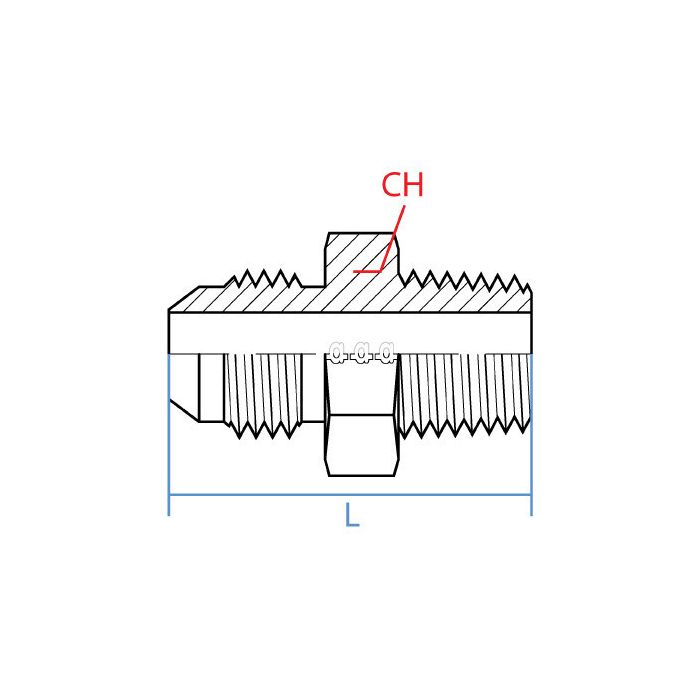

main product photo

Male Jic X Male Bspt

Ask A Question

Description & Features

This robust hydraulic adapter features a male JIC connection on one side with a 1/2 - 20 UNF thread and a male BSPT connection on the other with an R 1/8 - 28 thread. Constructed from durable steel, it ensures reliable performance and longevity in demanding industrial environments. The straight design of the Male JIC X Male BSPT adapter facilitates seamless connection between different hydraulic components, enhancing system compatibility and efficiency.

With a compact length of 32.2mm and a width of 14mm, this adapter is engineered for efficient space utilization in hydraulic systems. It is part of the Adaptall brand, known for precision and dependability in fluid power applications. This adapter is ideal for various industrial settings requiring secure and leak-free connections between JIC and BSPT threaded components.

SKU: 9011-05-02

Supplier Part Number (MPN): 9011-05-02

Specifications

Connection Size 1
5/16 in
Connection Size 2
1/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9011 Series
Thread Size
1/2-20 x 1/8-28

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Freddie H on Nov 17, 2025, 12:08 PM
got a line running R 1/8 BSPT on one end and JIC on the other, this the right part to bridge them together?
Answer by: Customer Support on Nov 19, 2025, 8:41 AM
Yeah, that's exactly what this adapter is built for. One end is a 1/2-20 UNF male JIC, the other is an R 1/8-28 male BSPT. Both sides are male, so you'd need female fittings on the components you're connecting it to. Steel construction, straight configuration, and it comes in at 32.2mm long with a 14mm wrench width. Fits tight spaces reasonably well for what it is.
