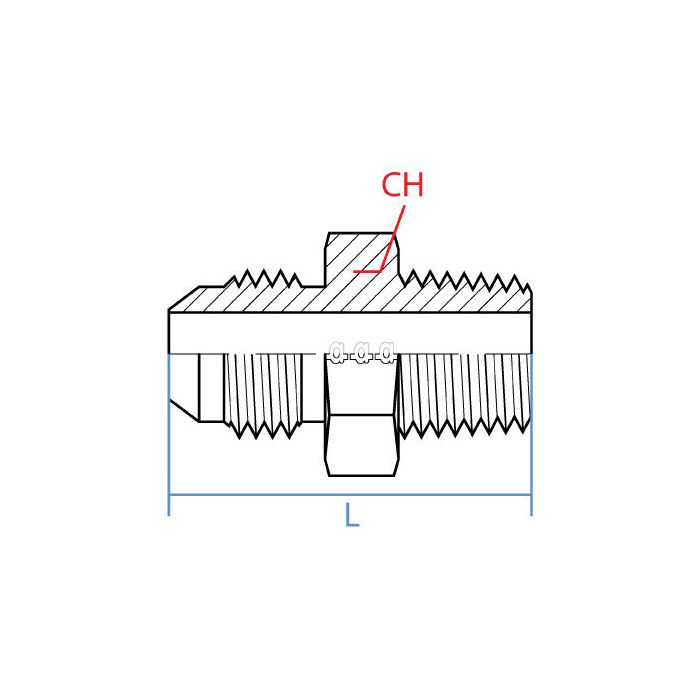

main product photo

Male Jic X Male Bspt

Ask A Question

Description & Features

This steel straight adapter features a male JIC (Joint Industry Council) end and a male Bspt (British Standard Pipe Tapered) end. The JIC side has a 5/16" size and a 1/2 - 20 UNF callout, while the Bspt side has a 1/4" size and R 1/4 - 19 callout. The Adaptall Ch Width is 14mm, and the Adaptall L Length is 40mm.

This Male JIC X Male Bspt adapter provides a reliable connection between different types of hydraulic fittings.

SKU: 9011-05-04

Supplier Part Number (MPN): 9011-05-04

Specifications

Connection Size 1
5/16 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Dimensions
36.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9011 Series
Thread Size
1/2-20 x 1/4-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Ray D on Jan 23, 2026, 7:18 PM
What's the deal with the different sized ends on this thing?
Answer by: Customer Support on Jan 25, 2026, 6:52 AM
It's made with a JIC (Joint Industry Council) end on one side, which is 5/16" size and 1/2 - 20 UNF callout, and a Bspt (British Standard Pipe Tapered) end on the other side, which is 1/4" size and R 1/4 - 19 callout. That lets you connect different kinds of hydraulic fittings together.
Question by: Peggy G on Nov 4, 2025, 9:06 AM
got a hose end that’s 1/2-20 UNF JIC, will this adapter match up to it?
Answer by: Customer Support on Nov 5, 2025, 1:58 PM
On the JIC side, it’s a male 5/16 inch with a 1/2 - 20 UNF thread callout, so it matches a 1/2-20 UNF JIC connection on that end.
Question by: Dwayne A on Nov 4, 2025, 3:10 PM
Got a line running R 1/4-19 BSPT on one end and JIC on the other, this the right adapter to tie them together?
Answer by: Customer Support on Nov 6, 2025, 6:49 AM
That's what this one's built for. One side is male JIC with a 1/2-20 UNF thread at 5/16" size, and the other side is male BSPT at R 1/4-19 with a 1/4" size. Steel construction, straight profile, so it'll give you a solid bridge between those two thread types without any funny angles or adapters stacked on adapters.
