Male Jic X Male Bspt

Ask A Question

Description & Features

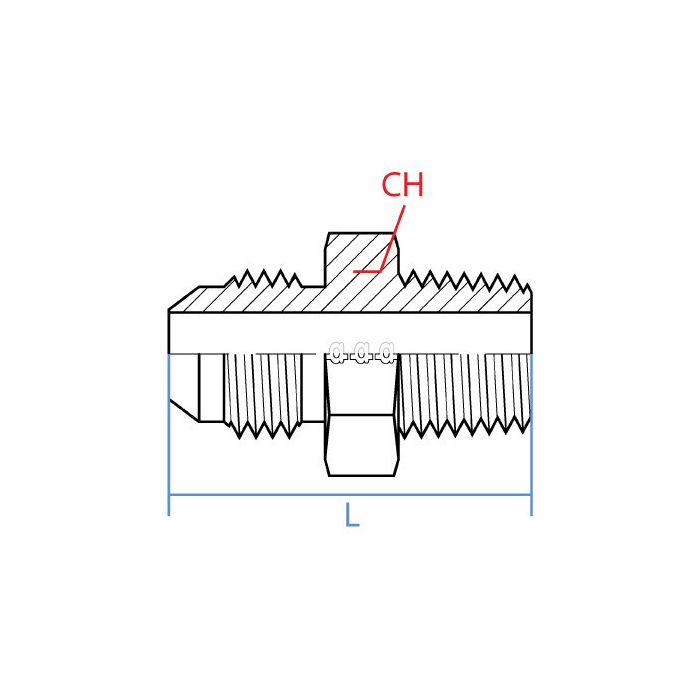

Manufactured from steel in a straight configuration, this adapter connects a 5/16" JIC male fitting (1/2-20 UNF thread) on one end to a 3/8" BSPT male fitting (R 3/8-19 thread) on the opposite end. The Male JIC x Male BSPT design makes it a practical solution for linking hydraulic circuits where JIC and British Standard Pipe Taper thread standards meet on the same line.

With an overall length of 36.6mm and a CH width of 17.5mm, the adapter is compact and suited for installations where space is a consideration. Produced by Adaptall, it is built to the dimensional standards expected in industrial hydraulic applications requiring reliable cross-standard thread compatibility.

SKU: 9011-05-06

Supplier Part Number (MPN): 9011-05-06

Specifications

Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Dimensions
32.6 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
9011 Series
Thread Size
1/2-20 x 3/8-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Norm R on Aug 28, 2025, 7:28 PM
trying to hook a 5/16 jic male line to a 3/8 bspt port, is this the right adapter or am i mixin threads up
Answer by: Customer Support on Aug 30, 2025, 6:39 AM
For cross-thread hookups like that, this adapter is the straight steel piece that bridges a 5/16 inch JIC male with 1/2-20 UNF threads on one end to a 3/8 inch BSPT male with R 3/8-19 threads on the other.
Question by: Pete C on Feb 21, 2026, 4:29 PM
Got a line running JIC on one end and the other end's got British pipe taper threads, will this thing bridge that gap straight across?
Answer by: Customer Support on Feb 23, 2026, 6:45 AM
That's what it's built for. One end is a 5/16" JIC male (1/2-20 UNF thread) and the other is a 3/8" BSPT male (R 3/8-19 thread), so it connects those two thread standards directly in a straight configuration. No adapting in stages or hunting down a middle piece. Adaptall machines it from steel, so it holds up in standard industrial hydraulic setups without any fuss.
