Male Jic X Male Bspt

Description & Features

Designed for robust industrial applications, this Male JIC X Male Bspt adapter offers a reliable connection between hydraulic components. Constructed from durable steel, the adapter ensures longevity and resilience under demanding conditions. Featuring a straight shape, it connects a 9/16 - 18 UNF male JIC fitting to a 1/8 - 28 male BSPT fitting, making it an essential component for systems requiring seamless integration of diverse thread types.

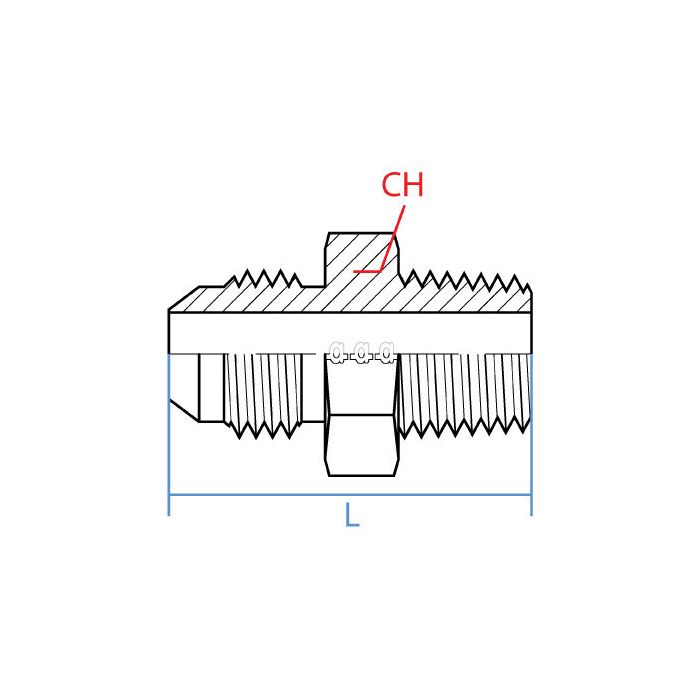

With a compact design, the adapter measures 32mm in length and has a width of 16mm, providing a streamlined solution without compromising on strength. Manufactured by Adaptall, a trusted name in hydraulic fittings, this adapter is ideal for various industrial settings. Its precision-engineered construction supports secure and leak-free connections, enhancing system integrity.

SKU: 9011-06-02

Supplier Part Number (MPN): 9011-06-02

Specifications

Connection Size 1 3/8 in	Connection Size 2 1/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 16 mm	Material Steel	Material Construction Carbon Steel	Series 9011 Series	Thread Size 9/16-18 x 1/8-28

Product Questions & Answers (2)

Question by: Lee M on Jul 16, 2025, 10:23 AM

trying to hook up a 9/16-18 UNF JIC line to a 1/8 BSPT port, is this the right adapter?

Answer by: Customer Support on Jul 18, 2025, 6:12 AM

For that thread mix, it matches up as a straight male JIC to male BSPT adapter. Side 1 is a 9/16 - 18 UNF male JIC (3/8 inch size), and side 2 is an R 1/8 - 28 male BSPT (1/8 inch size).

Question by: Freddie P on May 31, 2025, 7:16 AM

Will this fitting hold up okay in a hydraulic system running around 2000 psi?

Answer by: Customer Support on Jun 2, 2025, 7:31 AM

This adapter, made from durable steel, should be suitable for hydraulic systems requiring robust connections. It's designed to provide a secure and leak-free connection in demanding industrial conditions.
