main product photo

Male Jic X Male Bspt

Ask A Question

Description & Features

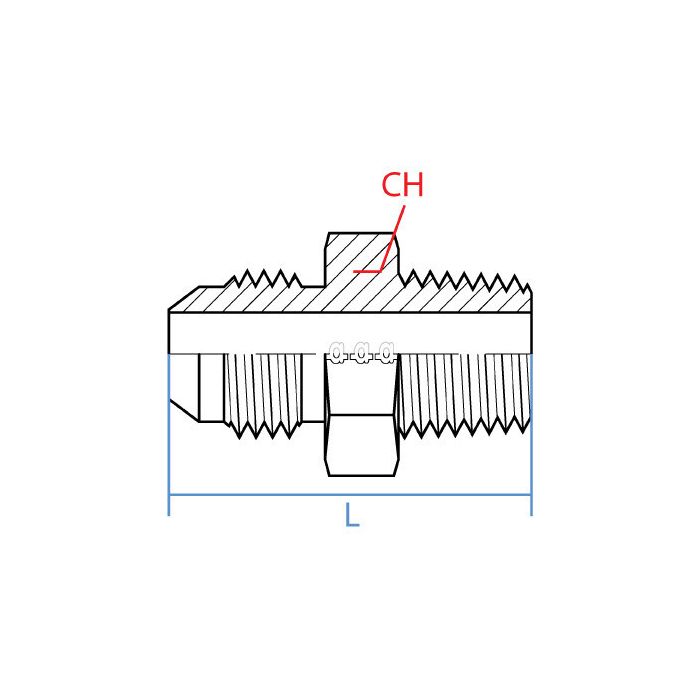

Constructed from durable steel, this straight Male JIC x Male BSPT adapter is designed for robust industrial applications. Featuring a 3/4 - 16 UNF JIC male connection on one side and a R 3/4 - 14 BSPT male connection on the other, this versatile adapter ensures compatibility with a wide range of hydraulic systems. The precise design includes a 27mm width and a total length of 50.1mm, providing secure and leak-proof connections.

Engineered by Adaptall, a trusted name in hydraulic connectors, this adapter is built to meet demanding industrial standards. The 1/2" JIC side and 3/4" BSPT side allow for seamless integration into existing systems, ensuring reliable performance in high-pressure environments. Whether used in manufacturing, construction, or industrial maintenance, this adapter facilitates efficient fluid transfer and system integration.

SKU: 9011-08-12

Supplier Part Number (MPN): 9011-08-12

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Dimensions
48.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9011 Series
Thread Size
3/4-16 x 3/4-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Clint S on Feb 5, 2026, 7:46 PM
got a hose end that’s 3/4-16 UNF JIC male and i need to land it into a R 3/4-14 BSPT port. is this the right straight adapter?
Answer by: Customer Support on Feb 7, 2026, 6:14 AM
For that thread combo, yes. One side is a 3/4 - 16 UNF JIC male (listed as 1/2 inch JIC), and the other side is an R 3/4 - 14 BSPT male (3/4 inch BSPT), in a straight steel adapter.
Question by: Rhonda W on Jul 20, 2025, 9:07 PM
Got a machine running BSPT fittings on one end and JIC on the other, will this adapter bridge that gap without needing extra pieces in between?
Answer by: Customer Support on Jul 22, 2025, 6:49 AM
That's what this one's built for. One side is a 3/4-16 UNF JIC male thread, the other is an R 3/4-14 BSPT male thread, so it connects those two standards directly. No additional adapters needed in between. It's a straight configuration, so the connection stays inline without any offset. Steel construction holds up well in industrial setups where you've got real pressure and regular use.
