Male Jic X Male Bspt

Description & Features

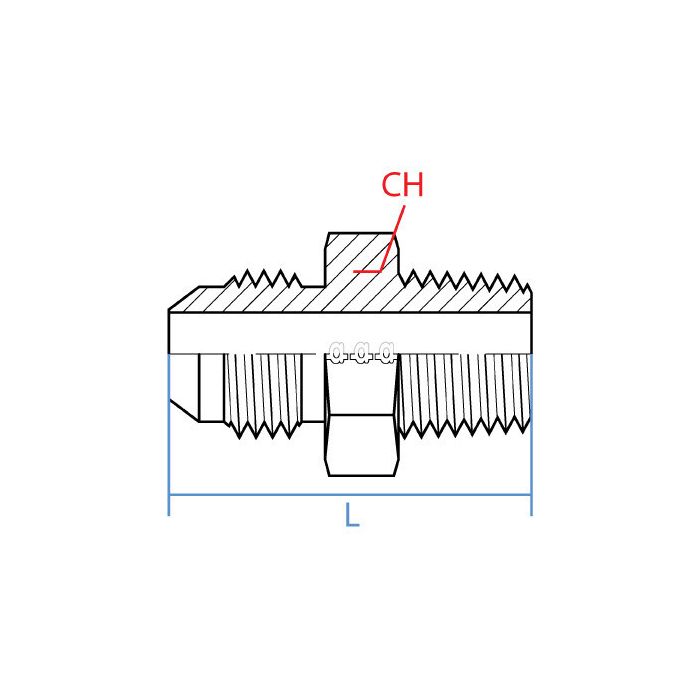

Constructed from steel in a straight configuration, this Adaptall adapter connects a 5/8" JIC male fitting (7/8-14 UNF thread) on one end to a 3/8" BSPT male fitting (R 3/8-19 thread) on the other. With an overall length of 42.8mm and a wrench width of 25.5mm, the Male JIC X Male Bspt is a compact, single-piece solution for joining JIC and BSPT threaded hydraulic lines without additional hardware.

Adaptall adapters are widely used in hydraulic systems where different thread standards must be bridged reliably. The steel construction provides durability suited to the pressures and environments typical of mobile and industrial hydraulic circuits.

SKU: 9011-10-06

Supplier Part Number (MPN): 9011-10-06

Specifications

Connection Size 1 5/8 in	Connection Size 2 3/8 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Dimensions 43 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9011 Series	Thread Size 7/8-14 x 3/8-19

Product Questions & Answers (1)

Question by: Dean C on Jul 29, 2025, 7:52 PM

Will this fitting work with a standard JIC flare? I'm hooking up a hydraulic cylinder and need to make sure the threads match up.

Answer by: Customer Support on Jul 31, 2025, 3:52 PM

This Adaptall adapter has a 5/8" JIC male end with 7/8-14 UNF threads, so it'll fit a standard JIC flare of that size.
