Male Jic X Male Bspt

Description & Features

This steel, straight Adaptall fitting is a Male JIC X Male Bspt, designed for connecting hydraulic lines with different thread types. It adapts a 3/4" JIC male connection (1-1/16 - 12 UN callout) to a 1" BSPT male connection (R 1 - 11 callout).

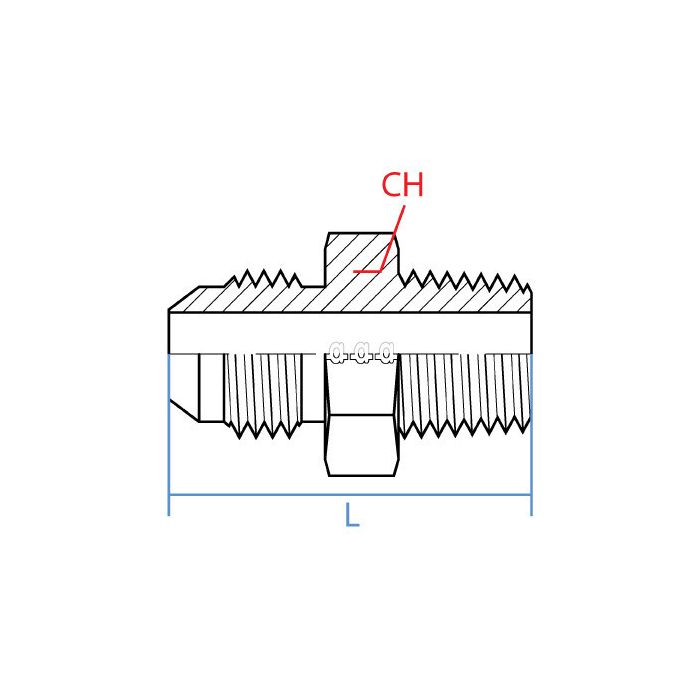

The Adaptall 9011-12-16 Male JIC X Male Bspt adapter has a length of 62.3mm and a wrench flat of 35mm.

SKU: 9011-12-16

Supplier Part Number (MPN): 9011-12-16

Specifications

Connection Size 1 3/4 in	Connection Size 2 1 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Dimensions 57.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 36 mm	Material Steel	Material Construction Carbon Steel	Series 9011 Series	Thread Size 1-1/16-12 x 1-11

Product Questions & Answers (3)

Question by: Kurt W on Jul 18, 2025, 10:22 AM

got a hose with a 3/4 JIC male end, will this adapter match up to it?

Answer by: Customer Support on Jul 19, 2025, 2:49 PM

The JIC side on this adapter is a 3/4 inch male with a 1-1/16 - 12 UN thread callout, so it matches hoses or ports that take that JIC size.

Question by: Harvey M on Jun 30, 2025, 9:26 AM

Will this fitting hold up okay for hydraulic oil?

Answer by: Customer Support on Jul 1, 2025, 3:29 PM

This Adaptall fitting is made of steel, so it's suitable for use with hydraulic oil in connecting hydraulic lines.

Question by: Larry B on Sep 4, 2025, 8:11 PM

What thread sizes are we actually dealing with on each end of this fitting?

Answer by: Customer Support on Sep 6, 2025, 6:50 PM

One end runs a 3/4" JIC male thread, which uses a 1-1/16 - 12 UN callout. The other end is a 1" BSPT male, callout R 1 - 11. So you're looking at two different thread standards on a straight body, no bends or offsets involved.
