Male Jic X Male Bspt

Description & Features

This steel Adaptall fitting is a male JIC to male Bspt adapter, commonly used in hydraulic applications.

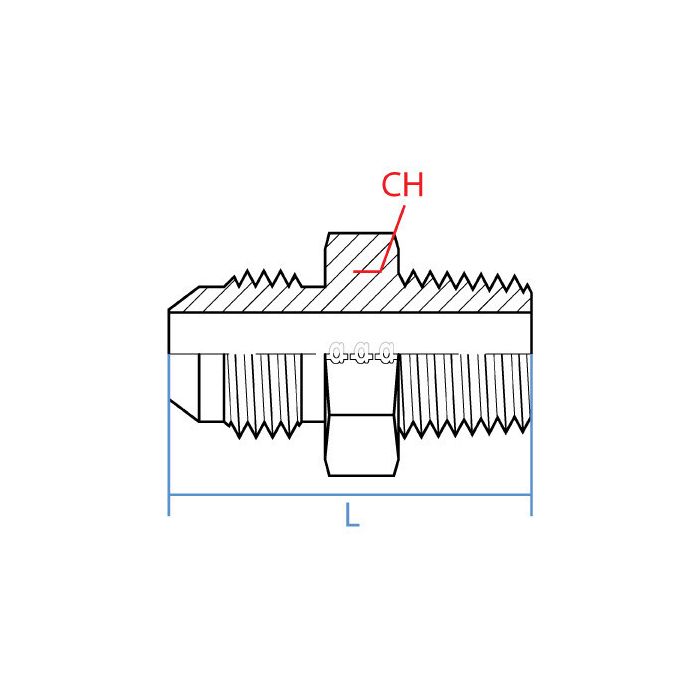

It features a 1" male JIC side 1 with a 1-5/16 - 12 UN callout, and a 3/4" male Bspt side 2 with a R 3/4 - 14 callout. The 9011-16-12 Male Jic X Male Bspt adapter has a length of 55.9mm with a 35mm wrench flat.

SKU: 9011-16-12

Supplier Part Number (MPN): 9011-16-12

Specifications

Connection Size 1 1 in	Connection Size 2 3/4 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Dimensions 53 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 36 mm	Material Steel	Material Construction Carbon Steel	Series 9011 Series	Thread Size 3/4-14, 1-5/16-12

Product Questions & Answers (1)

Question by: Marvin A on Mar 9, 2026, 9:28 AM

Got a line running JIC fittings on one end and the other side needs to tie into a British-threaded port, will this adapter handle that crossover without needing anything else in between?

Answer by: Customer Support on Mar 11, 2026, 6:41 AM

That's exactly what this fitting is built for. One end is a 1-inch male JIC with a 1-5/16-12 UN thread, and the other is a 3/4-inch male BSPT running an R 3/4-14 thread. As long as both those sizes match your line and your port, you can make that connection directly with this one piece.
