Male Jic X Male Bspt

Description & Features

Constructed from steel in a straight configuration, this 1" Male Jic X Male Bspt adapter provides a reliable transition between JIC and BSPT threaded connections in hydraulic systems. Side one features a 1-5/16-12 UN male JIC thread, while side two carries an R 1-11 male BSPT thread, making it well suited for connecting hydraulic lines between equipment built to different international thread standards.

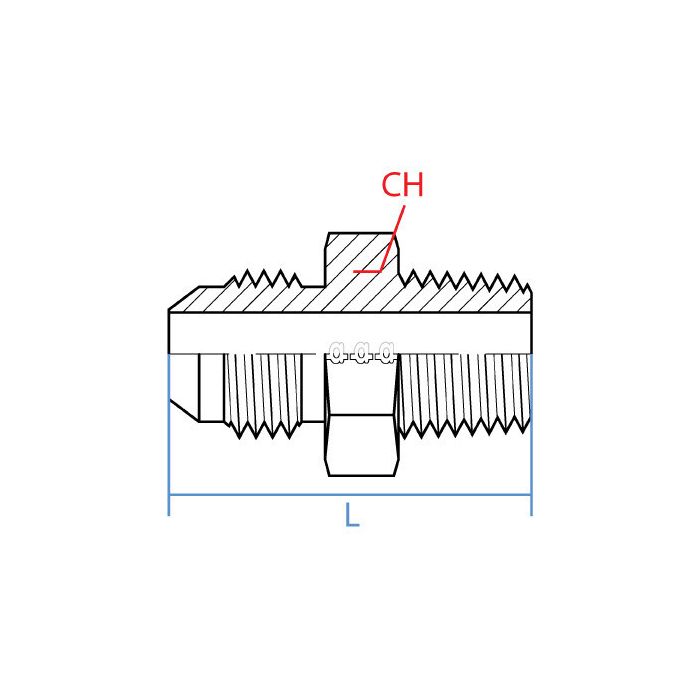

Manufactured by Adaptall, the fitting measures 59.7mm in length with a 36mm CH width, offering a compact, straight-body design that fits within tight installation envelopes. Steel construction provides the durability required for demanding hydraulic service environments.

SKU: 9011-16-16

Supplier Part Number (MPN): 9011-16-16

Specifications

Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Dimensions 59 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 36 mm	Material Steel	Material Construction Carbon Steel	Series 9011 Series	Thread Size 1-5/16-12 x 1-11

Product Questions & Answers (1)

Question by: Donna W on Jun 15, 2025, 8:51 PM

Will this fitting hold up okay in a hydraulic system running at, say, 2000 psi? Just wanna make sure before I order.

Answer by: Customer Support on Jun 17, 2025, 6:18 AM

Steel construction should provide ample durability for demanding hydraulic applications. This fitting is built to handle the pressures typically encountered in hydraulic service.
