Male Jic X Male Bspt

Ask A Question

Description & Features

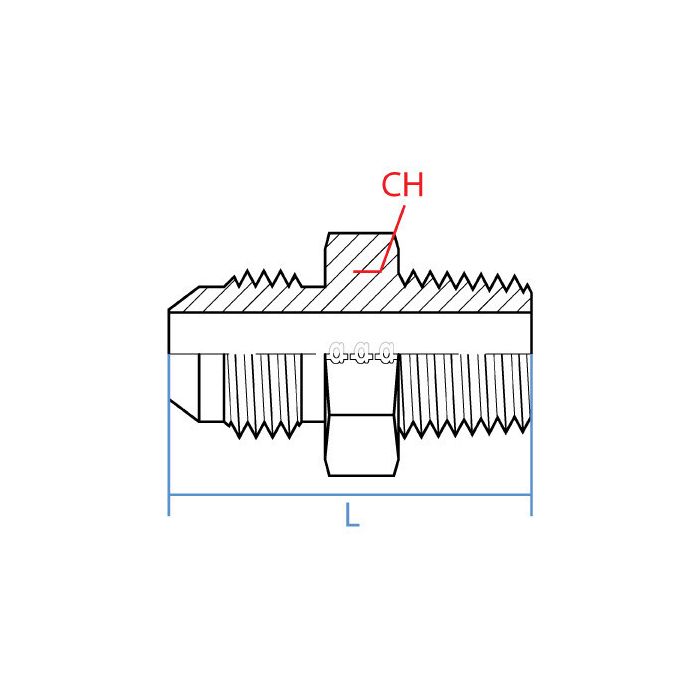

This straight Adaptall fitting connects male JIC and male BSPT threads. It adapts a 1-1/2" JIC side 1 with a 1-7/8 - 12 UN callout to a 1-1/2" BSPT side 2 with an R 1-1/2 - 11 callout. Constructed of steel, this Male Jic X Male Bspt fitting offers durability in demanding hydraulic applications.

This fitting has a 51mm Adaptall Ch Width and an Adaptall L Length of 73.7mm.

SKU: 9011-24-24

Supplier Part Number (MPN): 9011-24-24

Specifications

Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Male BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Male BSPT
Dimension Standards
DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Dimensions
68 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9011 Series
Thread Size
1-7/8-12 x G1-1/2-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Janet B on Mar 3, 2026, 9:16 AM
got a hose end that’s 1-7/8-12 UN JIC male. will this adapter get me over to a 1-1/2 BSPT port?
Answer by: Customer Support on Mar 5, 2026, 7:05 AM
Yes, it bridges those exact thread callouts. Side 1 is a 1-1/2 inch male JIC with a 1-7/8 - 12 UN callout, and side 2 is a 1-1/2 inch male BSPT with an R 1-1/2 - 11 callout, in a straight steel fitting.
Question by: Shane R on Mar 7, 2026, 8:35 AM
Got a line running 1-1/2 inch JIC on one end and need to tie into a BSPT port on the other side, this the right piece for that?
Answer by: Customer Support on Mar 8, 2026, 9:13 AM
That's what this fitting handles. One end is 1-1/2 inch JIC male with a 1-7/8-12 UN thread, and the other is 1-1/2 inch BSPT male with an R 1-1/2-11 thread. Both sides are male, so you'd be threading into female ports or fittings on each end. Steel construction, straight configuration, no angling involved. If your port sizes and thread types match up, this one should drop right in.
