Male Jic X Male Bspt

Description & Features

Constructed from steel in a straight configuration, this 2" Male JIC x Male BSPT adapter is designed to connect JIC and BSPT threaded hydraulic lines within the same assembly. The JIC side carries a 2-1/2–12 UN thread form, while the BSPT side is threaded R 2–11, making it suited for bridging equipment with differing thread standards across hydraulic circuits.

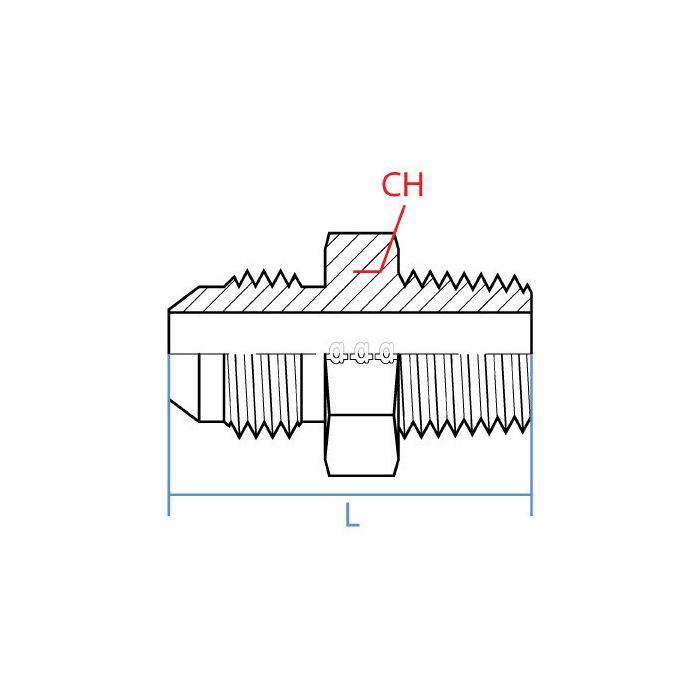

The Adaptall Male Jic X Male Bspt measures 82.5mm in length with a 70mm across-flats width, providing adequate wrench engagement during installation. Steel construction supports the mechanical demands typical of industrial hydraulic assemblies where thread compatibility between JIC and BSPT connections is required.

SKU: 9011-32-32

Supplier Part Number (MPN): 9011-32-32

Specifications

Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Male BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Male BSPT	Dimension Standards DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514	Dimensions 82 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9011 Series	Thread Size 2-1/2-12 x 2-11

Product Questions & Answers (1)

Question by: Lee E on Apr 26, 2025, 6:56 AM

What kind of steel is this made from? Just want to make sure it'll hold up.

Answer by: Customer Support on Apr 27, 2025, 7:35 PM

The adapter is constructed from steel, which provides the strength needed for hydraulic applications requiring JIC and BSPT connections.
