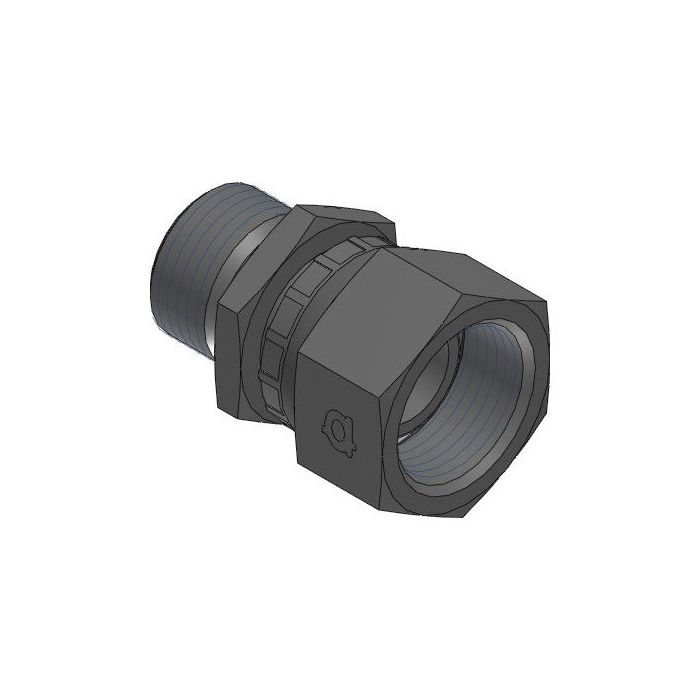

main product photo

Male Bspp X Female Bspp Swivel

Ask A Question

Description & Features

A straight steel adapter connecting a G 5/8-14 male BSPP thread on one end to a G 3/4-14 female BSPP swivel on the other, this Male BSPP X Female BSPP Swivel is suited for hydraulic line connections where a size transition between 5/8" and 3/4" BSPP ports is required. The swivel feature on the female end allows the mating component to be positioned without twisting the connected line, simplifying assembly and reducing stress on fittings during installation.

Constructed from steel, the fitting measures 50mm in overall length, with wrench flats of 30mm on the male side and 32mm on the female side. Manufactured by Adaptall, it is designed for compatibility within their broad range of interchangeable hydraulic adapters.

SKU: 9015-10-12

Supplier Part Number (MPN): 9015-10-12

Specifications

Brand
adapt-all
Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Female BSP Swivel, Male BSP Swivel
Connection Type 1
Male BSPP 60 deg Flare Swivel
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200
Dimensions
50 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9015 Series
Thread Size
5/8-14 x 3/4-14

Product Questions & Answers (3)

Question by: Clint R on Jun 28, 2025, 7:38 AM
trying to swap from a 5/8 BSPP port to a 3/4 BSPP hose end, is this the straight adapter for that?
Answer by: Customer Support on Jun 30, 2025, 6:43 AM
For stepping between BSPP sizes, it connects a G 5/8-14 male BSPP on one side to a G 3/4-14 female BSPP swivel on the other, in a straight steel body.
Question by: Ralph M on Jan 20, 2026, 5:01 PM
Will this fitting work to connect a 5/8" BSPP male fitting to a 3/4" BSPP female fitting?
Answer by: Customer Support on Jan 22, 2026, 6:49 AM
Yes it will. This straight steel adapter connects a G 5/8-14 male BSPP thread on one end to a G 3/4-14 female BSPP swivel on the other.
Question by: Dwight L on Aug 2, 2025, 10:20 AM
got a 5/8 BSPP port on my manifold block and need to step up to a 3/4 female connection on the line side, this the right fitting for that?
Answer by: Customer Support on Aug 4, 2025, 6:41 AM
That's what this adapter is built for. One end is a G 5/8-14 male BSPP thread that goes into your manifold port, and the other end is a G 3/4-14 female BSPP swivel where your line connects. The swivel on the female side lets you rotate the mating component into position without twisting the hose or line, which makes getting everything lined up a whole lot easier during assembly.
