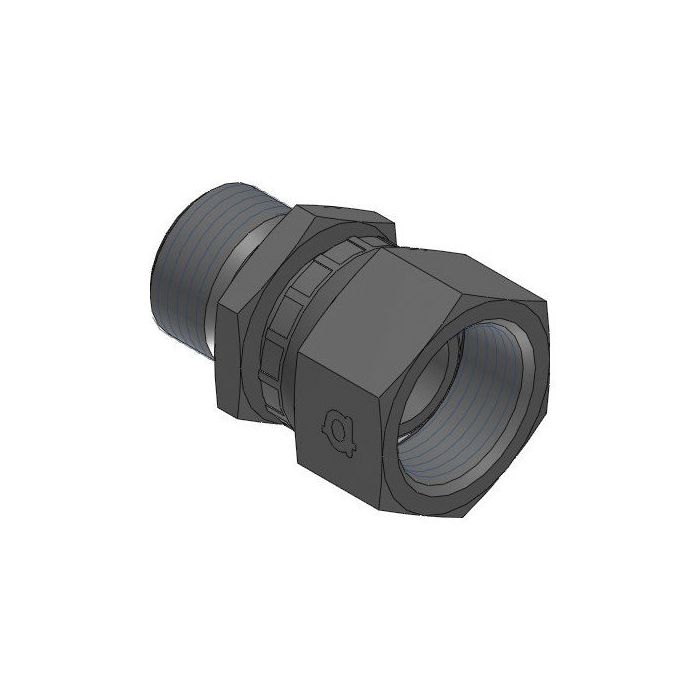

main product photo

Male Bspp X Female Bspp Swivel

Ask A Question

Description & Features

This straight steel fitting is a Male Bspp X Female Bspp Swivel, with Adaptall Side 1 being a G 1 - 11 male end with a 1" size, and Adaptall Side 2 being a G 1-1/4 - 11 female end with a 1-1/4" size.

The Adaptall Ch1 Width and Adaptall Ch2 Width are both 50mm, and the Adaptall L Length is 59mm.

SKU: 9015-16-20

Supplier Part Number (MPN): 9015-16-20

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Female BSP Swivel, Male BSP Swivel
Connection Type 1
Male BSPP 60 deg Flare Swivel
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200
Dimensions
59 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9015 Series
Thread Size
1-11 x 1-1/4-11

Product Questions & Answers (2)

Question by: Rick A on Dec 3, 2025, 6:33 PM
Got a 1" male BSPP line I need to step up to a 1-1/4" female BSPP connection. This fitting do that?
Answer by: Customer Support on Dec 5, 2025, 12:40 PM
That's what this one's for. The male end is G 1-11 at 1 inch, and the female end is G 1-1/4-11 at 1-1/4 inch, so it bridges that size difference in a straight run. Both wrench flats come in at 50mm, and the overall length is 59mm. Steel construction throughout.
Question by: Travis H on Aug 15, 2025, 7:55 PM
Will this fitting work to connect a 1" male BSPP to a 1-1/4" female BSPP?
Answer by: Customer Support on Aug 17, 2025, 6:11 AM
That's precisely what this fitting is for. It adapts a 1" male BSPP (G 1 - 11) to a 1-1/4" female BSPP (G 1-1/4 - 11).
