Male Metric X Female Bspp

Description & Features

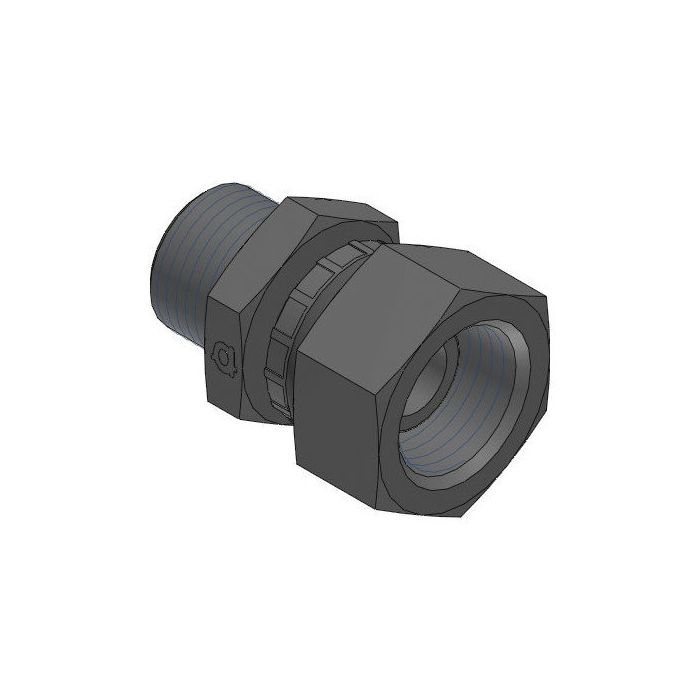

This straight steel adapter fitting connects male Metric and female Bspp threads. It features a Metric M18 X 1.5 male connection on one side and a G 1/2 - 14 female Bspp connection on the other.

The Adaptall Male Metric X Female Bspp adapter has a Ch1 width of 24mm and a Ch2 width of 27mm. Its overall length (L) measures 41.5mm.

SKU: 9018-18-08

Supplier Part Number (MPN): 9018-18-08

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, Male Metric
Connection Type 1
Male Metric
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, DIN 7631, ISO 1179, ISO 6149, ISO 8434-6, ISO 9974
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9018 Series
Thread Size
1/2-14 x M18x1.5

Product Questions & Answers (2)

Question by: Brett W on Nov 13, 2025, 12:26 PM
Got a hydraulic line coming off a European-built press with an M18 x 1.5 male fitting on it, what's on the other end of this adapter so I know if it'll work with my existing setup?
Answer by: Customer Support on Nov 14, 2025, 5:43 PM
The opposite end carries a G 1/2-14 female BSPP connection. So if your existing line or component has a male BSPP half-inch fitting, this adapter bridges straight across from that Metric M18 x 1.5 male side to it. Both thread types and sizes are fixed, there's no adjustability on either end, so just confirm your mating hardware matches those two callouts before ordering.
Question by: Eddie R on May 1, 2025, 6:26 PM
trying to hook a metric line into a BSPP port, is this the right adapter?
Answer by: Customer Support on May 2, 2025, 8:45 PM
It bridges those two thread standards in a straight steel fitting, with an M18 x 1.5 male on one end and a G 1/2 - 14 female BSPP on the other.
