Male Metric X Fbspp Swivel

Ask A Question

Description & Features

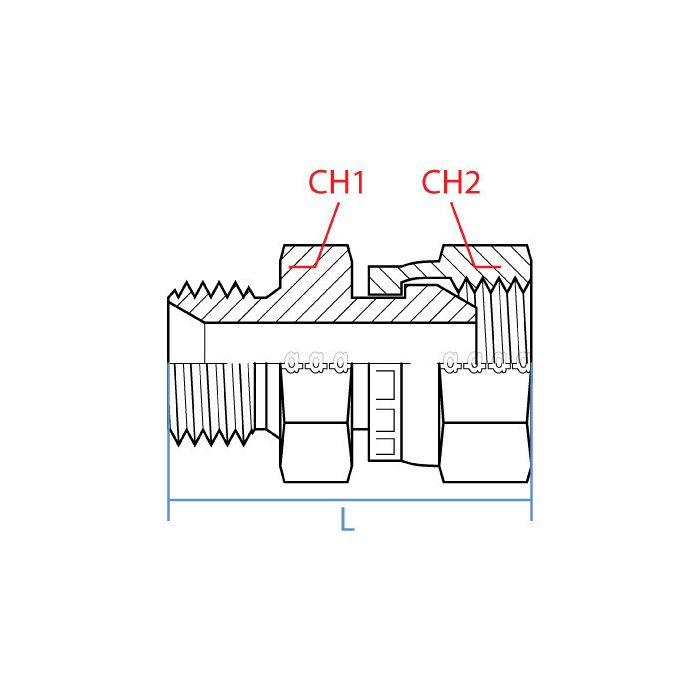

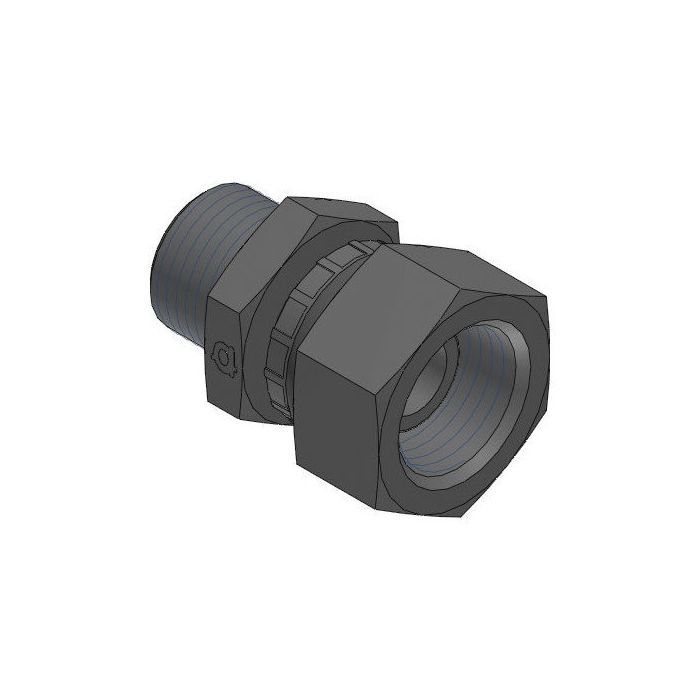

Constructed from steel in a straight configuration, this Male Metric X Fbspp Swivel connects an M20 x 1.5 male metric thread on one end to a G 1/2 - 14 female BSPP swivel on the other. The straight body measures 41.4mm in length, with 27mm wrench flats on both sides for reliable torque during installation.

The swivel end allows rotational movement after assembly, which helps reduce hose twist and strain in hydraulic systems where fixed-position fittings would otherwise introduce stress. Manufactured by Adaptall, this fitting suits applications requiring a transition between metric and BSPP thread standards on hydraulic lines and fluid power assemblies.

SKU: 9018-20-08

Supplier Part Number (MPN): 9018-20-08

Specifications

Brand
adapt-all
Connection Size 1
20 mm
Connection Size 2
1/2 in
Connection Type
Female BSP Swivel, Male Metric
Connection Type 1
Male Metric
Connection Type 2
Female BSPP 60 deg Flare Swivel
Dimension Standards
BS 5200, DIN 7631, ISO 1179, ISO 6149, ISO 8434-6, ISO 9974
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9018 Series
Thread Size
M20x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Jimmy H on Jan 23, 2026, 12:35 PM
So this fitting goes from metric to BSPP, right? Just want to make sure I'm understanding it correctly.
Answer by: Customer Support on Jan 24, 2026, 5:15 PM
That's correct. This fitting adapts from an M20 x 1.5 male metric thread to a G 1/2 - 14 female BSPP swivel.
Question by: Vince R on Aug 17, 2025, 6:48 AM
Got a hose assembly running off an M20 x 1.5 port and need to tie into a G 1/2-14 BSPP female connection on the other end, this fitting cover that transition?
Answer by: Customer Support on Aug 19, 2025, 6:20 AM
That's exactly what this fitting handles. One end is M20 x 1.5 male metric, the other is G 1/2-14 female BSPP, straight body, steel construction. The swivel on the BSPP end lets the hose rotate after the fitting is made up, which keeps twist and strain out of the line once everything is tightened down.
