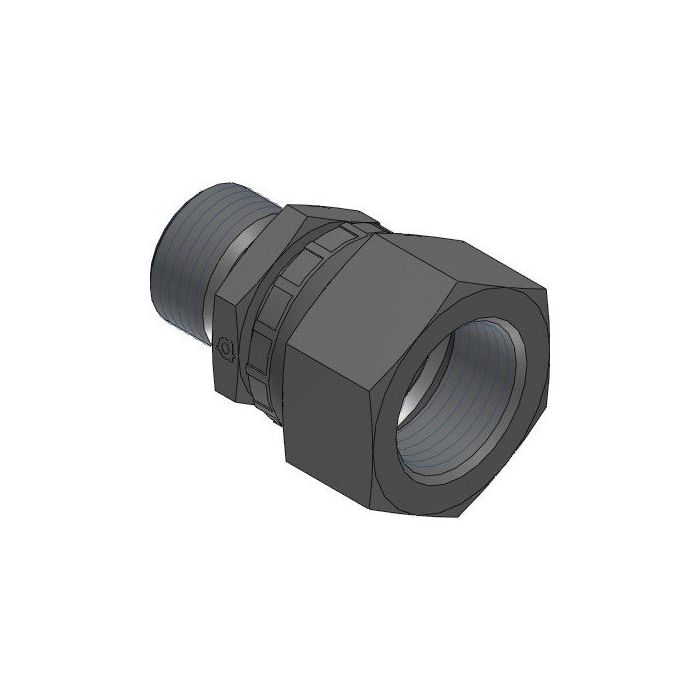

main product photo

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Male Bspp X F. Metric Swivel provides a reliable threaded connection between a G 1/4 - 19 male BSPP port and an M12 x 1.5 female DIN tube metric swivel end. The swivel feature on the metric side allows for rotational adjustment during installation, reducing strain on connected lines and simplifying routing in confined spaces.

With a body length of 35.6mm and wrench flats measuring 19mm on the BSPP side and 17mm on the metric side, the adapter is sized for compact hydraulic assemblies where mixed thread standards require a direct transition. It is an Adaptall product, manufactured to consistent dimensional tolerances suited for hydraulic circuit connections.

SKU: 9019-04-L06-12

Supplier Part Number (MPN): 9019-04-L06-12

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
6 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
35 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
17 x 19 mm
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
M12x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Carl A on Aug 1, 2025, 2:58 PM
How tight should I make this thing when I'm hooking it up?
Answer by: Customer Support on Aug 2, 2025, 3:58 PM
This fitting is designed for hydraulic systems, so you'll want to tighten it enough to ensure a leak-free seal. The BSPP side uses a 19mm wrench, and the metric side uses a 17mm wrench, which should give you enough leverage to get it snug. Don't overtighten, though, or you could damage the threads or the fitting itself.
Question by: Floyd E on Mar 12, 2026, 2:58 PM
got a valve block with a G 1/4-19 port and my tube nut is M12x1.5, is this the right adapter to tie those together
Answer by: Customer Support on Mar 14, 2026, 6:31 AM
For tying those two thread standards together, it matches a G 1/4 - 19 male BSPP on one side and an M12 x 1.5 female DIN tube metric swivel on the other, in a straight steel body.
Question by: Hugh S on Jun 13, 2025, 5:03 PM
Got a line coming off a metric DIN tube fitting and need to tie into a BSPP port, this straight adapter do that job?
Answer by: Customer Support on Jun 15, 2025, 6:53 AM
That's exactly what it's built for. One end is a G 1/4-19 male BSPP thread, the other is an M12 x 1.5 female DIN tube metric swivel. The swivel end lets you rotate the metric side during installation, which helps a lot when you're trying to avoid putting a twist in your line. Body length is 35.6mm, so it fits into tighter assemblies without a lot of extra stick-out.
