main product photo

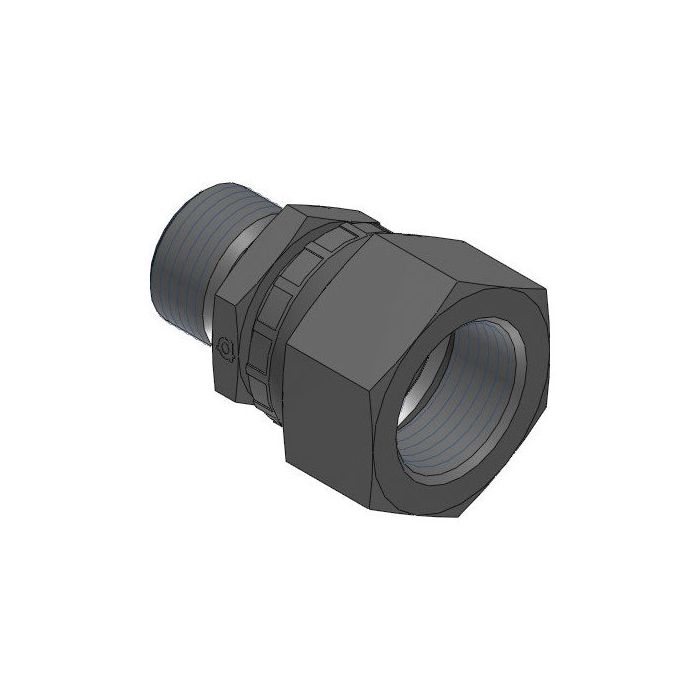

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

Designed for precision and reliability, this Male Bspp X F. Metric Swivel is an essential component for connecting hydraulic systems with diverse thread types. Crafted from high-quality steel, it ensures durability and resistance to wear in demanding industrial environments. The swivel features a male BSPP thread on one side (G 1/4 - 19) and a female metric DIN tube thread (M16 X 1.5) on the other, offering versatility in various hydraulic applications. The straight shape and compact dimensions, 19mm width for Ch1 and 22mm width for Ch2, with a total length of 37.2mm, make it ideal for tight installation spaces.

Manufactured by Adaptall, this swivel fitting is engineered for seamless integration with existing hydraulic setups, ensuring leak-free performance. Its robust construction supports reliable operation under high-pressure conditions, making it suitable for a range of industrial applications, from manufacturing to heavy machinery maintenance. With its precise specifications, this component provides flexibility and efficiency in system designs where different threading standards need to be connected.

SKU: 9019-04-L10-16

Supplier Part Number (MPN): 9019-04-L10-16

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
10 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
37.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
19 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
M16x1.5 x 1/4-19

Product Questions & Answers (2)

Question by: Tommy H on Apr 18, 2025, 3:32 PM
Will this fitting work to connect a BSPP thread to a metric DIN tube thread?
Answer by: Customer Support on Apr 19, 2025, 6:09 PM
Yes, that's exactly what this Adaptall fitting is designed for. It has a male BSPP thread on one side and a female metric DIN tube thread on the other, so it's perfect for connecting those different thread types.
Question by: Hugh B on Nov 15, 2025, 7:38 AM
trying to hook a G 1/4-19 male line to an M16 x 1.5 port, is this the right swivel for that?
Answer by: Customer Support on Nov 17, 2025, 6:37 AM
For that mix of threads, it matches up. One side is a male BSPP G 1/4-19, and the other side is a female metric DIN tube thread M16 x 1.5, so it is meant to bridge those two standards in one straight swivel fitting.
