main product photo

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

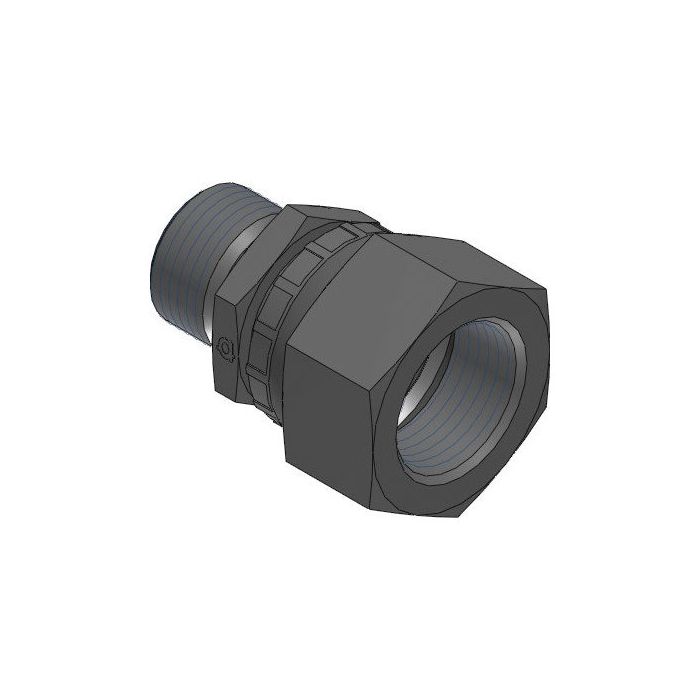

This straight steel adapter features a male 3/8" Bspp G 3/8 - 19 side 1 connection and a female M14 X 1.5 L08 Din Tube side 2 connection. This Male Bspp X F. Metric Swivel is manufactured by Adaptall.

SKU: 9019-06-L08-14

Supplier Part Number (MPN): 9019-06-L08-14

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
8 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
37 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
3/8-19 x M14x1.5

Product Questions & Answers (3)

Question by: Terry K on May 13, 2025, 7:43 PM
trying to hook a G 3/8 - 19 male BSPP port to a metric tube nut, is this the right adapter?
Answer by: Customer Support on May 15, 2025, 1:12 PM
For that mix of ends, it matches up as a straight steel adapter with a male 3/8 inch BSPP G 3/8 - 19 on side 1 and a female M14 x 1.5 DIN tube connection on side 2, listed as L08.
Question by: Ray A on Mar 9, 2026, 1:29 PM
Just want to make sure, this here adapter will go from a BSPP fitting to a DIN tube fitting, right?
Answer by: Customer Support on Mar 11, 2026, 10:24 AM
That's correct. This straight steel adapter goes from a 3/8" BSPP G 3/8 - 19 male connection to a female M14 X 1.5 L08 DIN Tube connection.
Question by: Wade E on Aug 17, 2025, 4:34 PM
Got a line running metric DIN tube fittings and need to tie into a BSPP port, this the right piece for that?
Answer by: Customer Support on Aug 18, 2025, 9:34 PM
Yeah, that's exactly what this adapter is built for. One end is a male 3/8" BSPP (G 3/8-19) and the other is a female M14 x 1.5 DIN tube swivel connection. Steel construction, straight configuration. If your port is G 3/8-19 and your tube side is L08 DIN metric, this connects them without any intermediate pieces.
