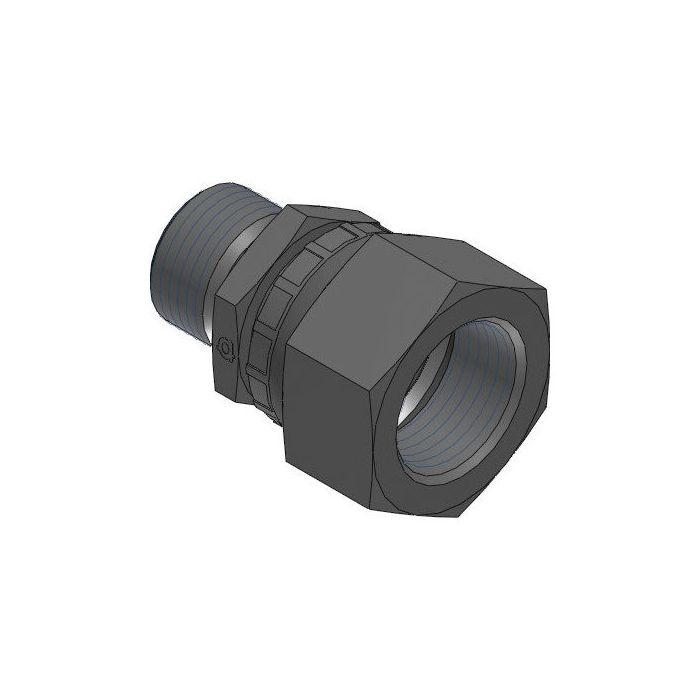

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Male Bspp X F. Metric Swivel provides a reliable transition between a G 3/8-19 male BSPP thread on one end and an M16 x 1.5 female DIN tube swivel connection on the other. The swivel end accommodates L10 metric tubing, making it well suited for hydraulic line assemblies where tube and port thread types differ.

Manufactured by Adaptall, the fitting measures 38mm in overall length with 22mm wrench flats on both sides, supporting straightforward installation with standard tooling. The straight body geometry suits direct in-line connections without requiring angled adapters. Steel construction provides the durability expected in demanding hydraulic service environments.

SKU: 9019-06-L10-16

Supplier Part Number (MPN): 9019-06-L10-16

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
10 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
38.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
3/8-19 x M16x1.5

Product Questions & Answers (2)

Question by: Carl W on Oct 30, 2025, 6:45 PM
trying to hook a G 3/8-19 port to an M16 x 1.5 metric tube nut, is that what this fitting is for?
Answer by: Customer Support on Nov 1, 2025, 11:50 AM
Built for mixed thread setups, it transitions from a G 3/8-19 male BSPP on one end to an M16 x 1.5 female DIN tube swivel on the other, and the swivel side is sized for L10 metric tubing.
Question by: Floyd T on Jan 11, 2026, 8:49 AM
Got a G 3/8-19 BSPP port on my hydraulic block and need to tie in some L10 metric tubing, this fitting handle that transition?
Answer by: Customer Support on Jan 13, 2026, 6:52 AM
That's what this one's built for. One end is a G 3/8-19 male BSPP thread, and the other is a female DIN tube swivel sized for L10 metric tubing. The swivel end gives you a little flexibility during assembly, which helps a lot when you're trying to get tube alignment right without fighting the fitting. Steel construction, straight body, so it drops right into an inline run without needing any angled adapter between them.
