Male Bspp X F. Metric Swivel

Description & Features

This steel straight Male Bspp X F. Metric Swivel features a G 3/8 - 19 male Bspp end with a 3/8" size connection on Side 1. Side 2 features a female Din Tube connection with a M20 X 1.5 callout and S12 size.

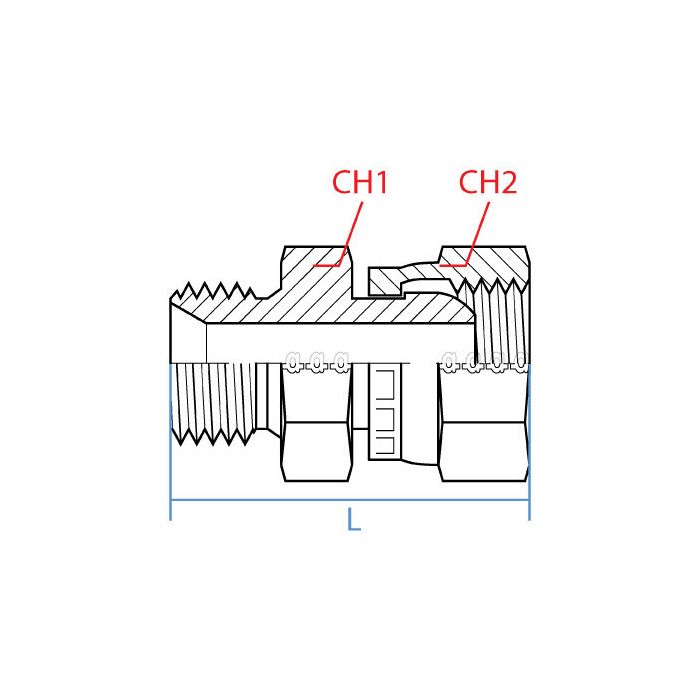

The Adaptall Male Bspp X F. Metric Swivel has a Side 1 wrench flat of 22mm and a Side 2 wrench flat of 27mm. The fitting has an overall length of 40.1mm.

SKU: 9019-06-S12-20

Supplier Part Number (MPN): 9019-06-S12-20

Specifications

CH1 Width 22mm	CH2 Width 27mm	L Length 40.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-06-S12-20	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Kirk P on Apr 18, 2025, 4:59 PM

Got a metric DIN tube line I'm trying to tie into a BSPP port on a manifold block. This fitting gonna work for something like that?

Answer by: Customer Support on Apr 20, 2025, 8:13 AM

Connecting those two thread standards is exactly what this fitting handles. Side 1 is a 3/8" G 3/8-19 male BSPP that threads into the manifold port, and Side 2 is a female M20 x 1.5 DIN tube connection in an S12 size that picks up your metric line. Straight configuration, steel construction, and at just over 40mm overall length it keeps things pretty compact in tight hydraulic connections runs.
