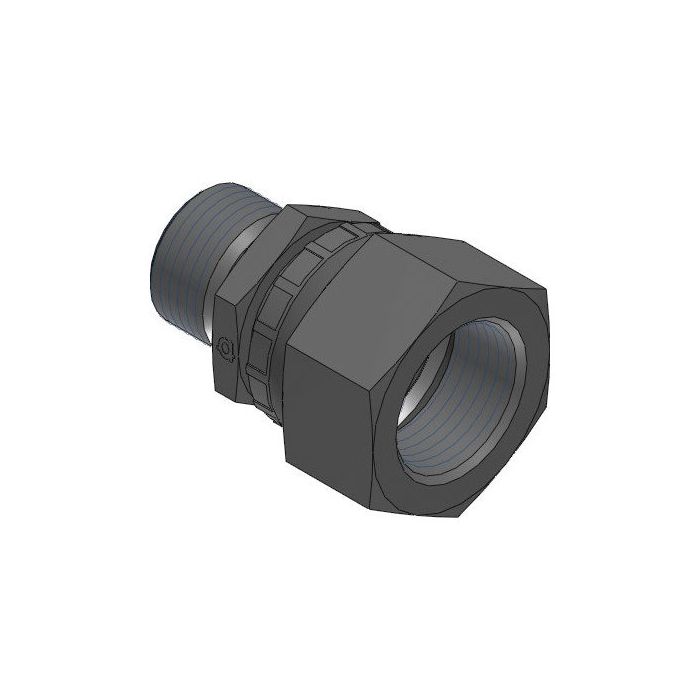

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

This straight steel fitting adapts between male Bspp and female metric Din tube connections. On one side, it features a G 1/2 - 14 male Bspp thread with a 27mm wrench flat. The other side features a female M18 X 1.5 metric Din tube connection, size L12, with a 24mm wrench flat.

This Male Bspp X F. Metric Swivel is manufactured from steel.

SKU: 9019-08-L12-18

Supplier Part Number (MPN): 9019-08-L12-18

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
12 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
41.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
1/2-14 x M18x1.5

Product Questions & Answers (2)

Question by: Curt G on May 8, 2025, 12:33 PM
Got a piece of equipment running a G 1/2 BSPP port and I need to hook up an M18 x 1.5 metric DIN tube line to it, this fitting gonna bridge that gap?
Answer by: Customer Support on May 9, 2025, 1:06 PM
That's what this one's built for. One end is a G 1/2 - 14 male BSPP thread, and the other accepts a female M18 x 1.5 metric DIN tube connection at size L12. So if your equipment port is male BSPP and your tube line terminates in a female metric DIN fitting, this adapter connects them straight through. No reducers or extra pieces needed for that combination.
Question by: Bobby A on May 4, 2025, 11:07 AM
Will this fitting hold up if I'm using it with hydraulic fluid? Don't want no leaks!
Answer by: Customer Support on May 6, 2025, 8:04 AM
This fitting is manufactured from steel, which is compatible with most hydraulic fluids when properly installed.
