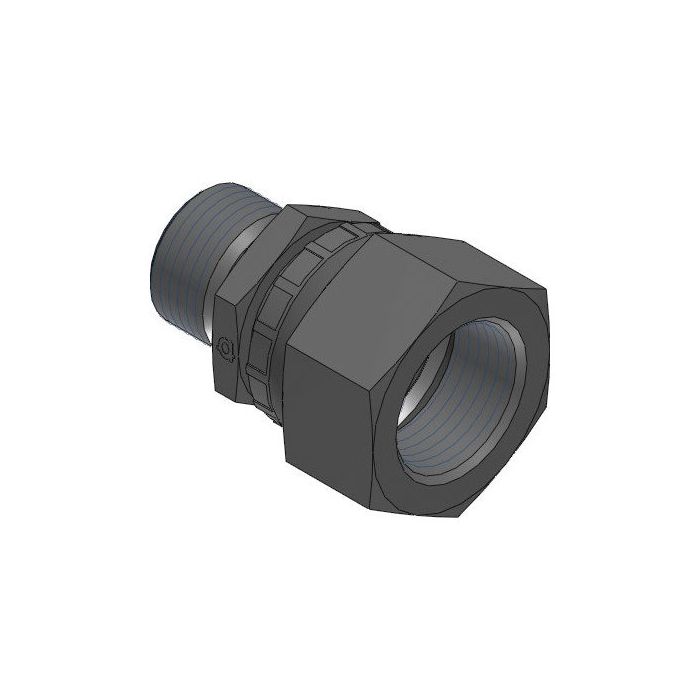

main product photo

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

Manufactured from steel in a straight configuration, this Male Bspp X F. Metric Swivel connects a G 1/2-14 male BSPP thread on one end to an M22 x 1.5 female DIN tube swivel on the other. The swivel design on the metric side allows for rotational adjustment during installation, reducing the need to torque fittings into a fixed position and helping to avoid line stress.

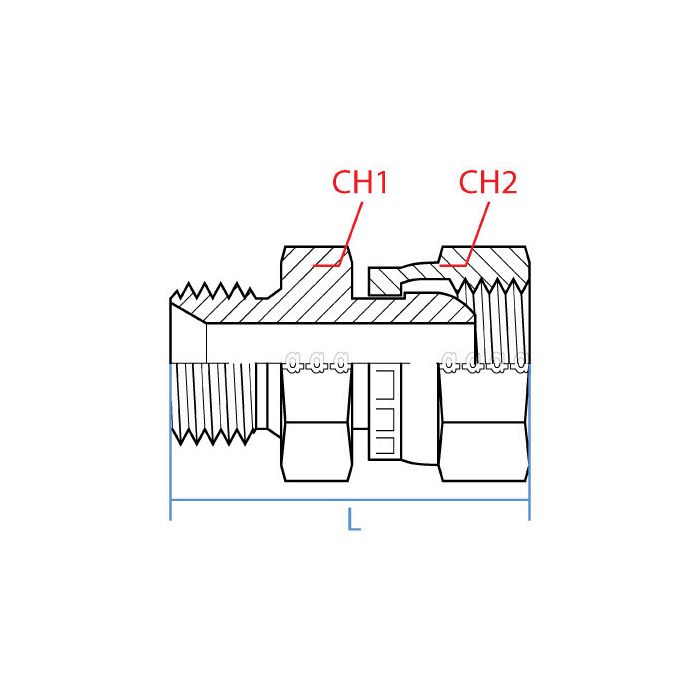

With a body length of 42mm and wrench flats of 27mm on both sides, the fitting is sized for standard industrial tooling. The straight geometry suits inline connections where both ports are axially aligned. Supplied by Adaptall, this fitting is suited for hydraulic line assemblies requiring a transition between BSPP and metric DIN tube ends.

SKU: 9019-08-L15-22

Supplier Part Number (MPN): 9019-08-L15-22

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
15 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
42.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (3)

Question by: Ray W on Jun 15, 2025, 5:41 PM
So this fitting goes from a G 1/2 to an M22, right? Just makin' sure I'm readin' it right.
Answer by: Customer Support on Jun 17, 2025, 12:47 PM
That's correct. This fitting adapts from a G 1/2-14 male BSPP thread to an M22 x 1.5 female DIN tube swivel.
Question by: Rhonda J on Oct 29, 2025, 1:08 PM
fitting's got 27mm wrench flats on both ends, does that mean I can use the same wrench to snug up both sides without swapping tools?
Answer by: Customer Support on Oct 30, 2025, 5:52 PM
Same size on both ends, so yeah, one wrench handles the whole job. The G 1/2-14 BSPP side and the M22 x 1.5 DIN tube side both measure 27mm across the flats, which keeps things simple when you're working in a tight spot and don't want to be hunting for a second tool.
Question by: Glen B on Oct 2, 2025, 7:26 AM
trying to hook a g 1/2-14 port up to an m22x1.5 din tube end, is that what this fitting is for?
Answer by: Customer Support on Oct 3, 2025, 6:12 PM
For that exact thread changeover, it’s a straight steel adapter with a G 1/2-14 male BSPP on one side and an M22 x 1.5 female DIN tube swivel on the other.
