Male Bspp X F. Metric Swivel

Description & Features

Constructed from steel in a straight configuration, this Male Bspp X F. Metric Swivel provides a reliable transition between a G 1/2-14 male BSPP thread and an M20 x 1.5 female DIN tube metric swivel connection. The swivel end allows rotational adjustment during installation, reducing stress on connected lines and simplifying assembly in tight or fixed-position applications.

Manufactured by Adaptall, the fitting measures 42mm in overall length with 27mm wrench flats on both sides, making it compatible with standard industrial tooling. With a 1/2" Side 1 and S12 metric side, it suits common hydraulic circuit configurations where BSPP and metric DIN tube connections must be joined within the same assembly.

SKU: 9019-08-S12-20

Supplier Part Number (MPN): 9019-08-S12-20

Specifications

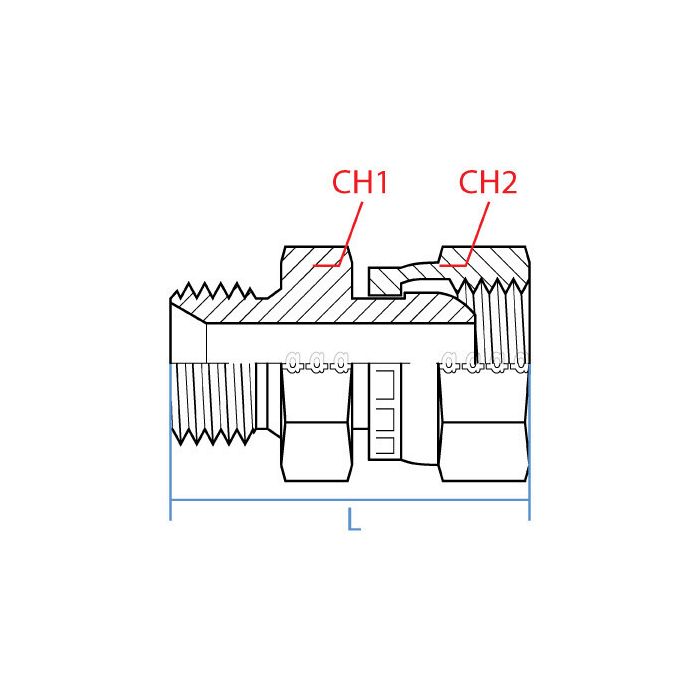

CH1 Width 27mm	CH2 Width 27mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout M20 X 1.5	Side 2 Gender F	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9019-08-S12-20	Product Weight 0.20 lbs

Product Questions & Answers (2)

Question by: Johnny K on Oct 21, 2025, 12:03 PM

got a hose end that’s G 1/2-14 BSPP male, will this mate up to a metric DIN tube swivel on the other side?

Answer by: Customer Support on Oct 22, 2025, 2:34 PM

For tying two standards together, it gives you a G 1/2-14 male BSPP on Side 1 and an M20 x 1.5 female DIN tube metric swivel on Side 2, so it is meant to bridge that exact BSPP-to-metric DIN tube connection.

Question by: Rex T on Mar 11, 2026, 6:01 AM

Got a metric DIN tube line I need to tie into a BSPP port on a pump housing. This fitting the right kind of adapter for that?

Answer by: Customer Support on Mar 12, 2026, 4:53 PM

That's what this one's built for. One end is a G 1/2-14 male BSPP thread, and the other is an M20 x 1.5 female DIN tube metric swivel. So if you've got a BSPP port on one side and a metric DIN tube line coming in on the other, this connects the two directly. The swivel end also lets you rotate the tube side during assembly, which helps a lot when you're working in a tight spot and can't easily reposition the line.
