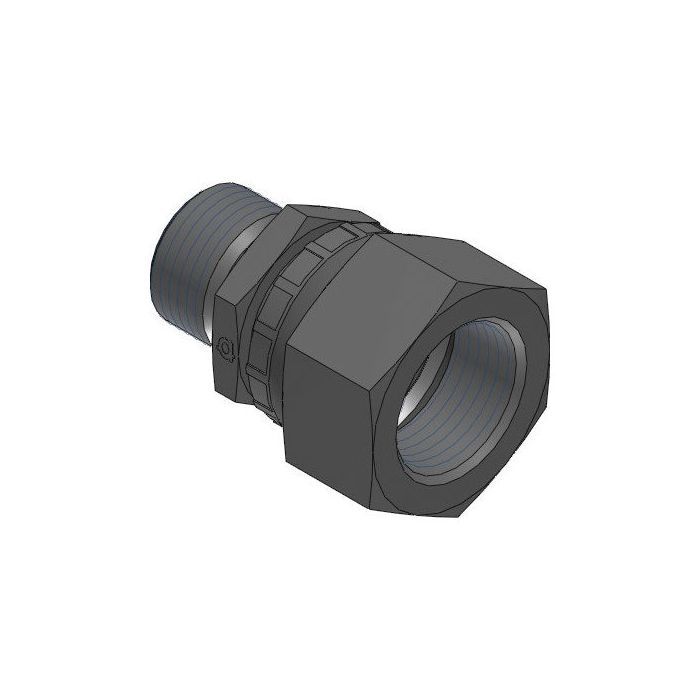

main product photo

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

This high-quality Male Bspp X F. Metric Swivel adapter is engineered to ensure seamless connectivity in hydraulic systems. Constructed from durable steel, this straight adapter offers reliable performance and longevity in demanding environments. With a G 1/2 - 14 male BSPP connection on one side and an M24 X 1.5 female DIN tube on the other, it provides versatile compatibility for various industrial applications.

Designed for precise fitment, this adapter features an Adaptall Ch1 width of 27mm and a Ch2 width of 30mm. Its overall length of 42.8mm ensures a compact and efficient design, making it suitable for use in space-constrained setups. Trust the Adaptall brand for its commitment to quality and precision in hydraulic components.

SKU: 9019-08-S16-24

Supplier Part Number (MPN): 9019-08-S16-24

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
S16
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
42 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
M24x1.5 x 1/2-14

Product Questions & Answers (3)

Question by: Tony M on Jul 6, 2025, 10:55 AM
Will this here adapter work with a metric tube that's M24 X 1.5? Just want to make sure before I order it.
Answer by: Customer Support on Jul 8, 2025, 6:53 AM
This adapter is designed to connect directly to an M24 X 1.5 female DIN tube, ensuring a secure and compatible fit for your hydraulic system.
Question by: Rick Y on Apr 7, 2025, 7:14 PM
Got a hydraulic line running M24 x 1.5 DIN tube fittings on one end and need to tie into a BSPP port on the other side. this the right adapter for that?
Answer by: Customer Support on Apr 9, 2025, 6:05 AM
That's the crossover this fitting handles. One end is a G 1/2-14 male BSPP connection and the other is an M24 x 1.5 female DIN tube swivel, so it bridges those two thread standards in a straight configuration. The female swivel side gives you a little rotational movement during assembly, which helps a lot when you're working in tight quarters and can't easily spin the line itself.
Question by: Tony B on Aug 9, 2025, 12:07 PM
trying to hook a G 1/2-14 port to a metric DIN tube, is this the right adapter?
Answer by: Customer Support on Aug 11, 2025, 6:09 AM
For that kind of hookup, it’s a straight steel adapter with a male BSPP G 1/2 - 14 on one end and a female DIN tube connection sized M24 x 1.5 on the other, so it matches those two connection callouts.
