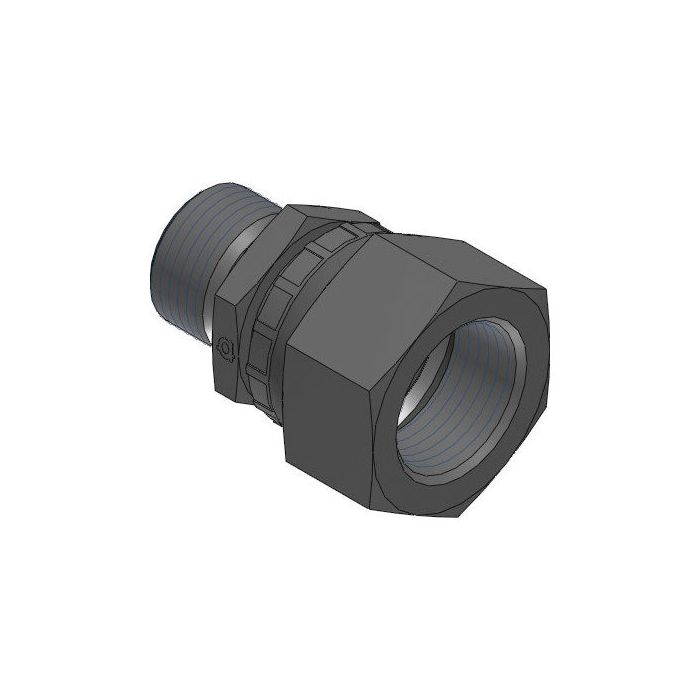

Male Bspp X F. Metric Swivel

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this Male Bspp X F. Metric Swivel provides a reliable transition between a 3/4" male BSPP thread (G 3/4-14) and a female metric DIN tube swivel connection (M22 x 1.5). The swivel end allows rotational movement during assembly, reducing the risk of thread stress or hose twist in fixed-point installations.

With a total length of 47.5mm and wrench flats measuring 32mm and 27mm across the two hex positions, the fitting is suited to hydraulic systems where compact, positive connections between BSPP and metric DIN tube circuits are required. Manufactured by Adaptall, this fitting is compatible with the Adaptall modular adapter system.

SKU: 9019-12-L15-22

Supplier Part Number (MPN): 9019-12-L15-22

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
15 mm
Connection Type
Female Metric Swivel, Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Female Metric DIN Tube Swivel
Dimension Standards
BS 5200, DIN 2353
Dimensions
47.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9019 Series
Thread Size
M22x1.5 x 3/4-14

Product Questions & Answers (1)

Question by: Lynn A on Jun 12, 2025, 2:28 PM
got a hose end with G 3/4-14 on it and the other side needs to land on M22 x 1.5, is this the right adapter?
Answer by: Customer Support on Jun 13, 2025, 6:30 PM
For a BSPP to metric DIN tube hookup, this fitting matches a 3/4 inch male BSPP thread (G 3/4-14) on one end and a female metric DIN tube swivel connection (M22 x 1.5, L15) on the other.
