Male Jic X Female Jic Swivel

Description & Features

Constructed from steel in a straight configuration, this 1/2" Male JIC X Female JIC Swivel provides a same-size, same-thread connection on both ends, with a male JIC fitting on one side and a rotating female JIC fitting on the other. Both sides carry a 3/4-16 UNF thread callout, making this adapter well-suited for hydraulic line assemblies where rotational freedom is needed to prevent hose twist during installation or repositioning.

Manufactured by Adaptall, the fitting measures 49mm in overall length with wrench flat widths of 20mm and 22mm across the two ends. The swivel design allows the female end to rotate independently, reducing stress on connected hose or tubing without breaking the seal. This type of adapter is commonly used in mobile hydraulic circuits, fluid power systems, and equipment requiring JIC 37° flare connections.

SKU: 9020-08-08

Supplier Part Number (MPN): 9020-08-08

Specifications

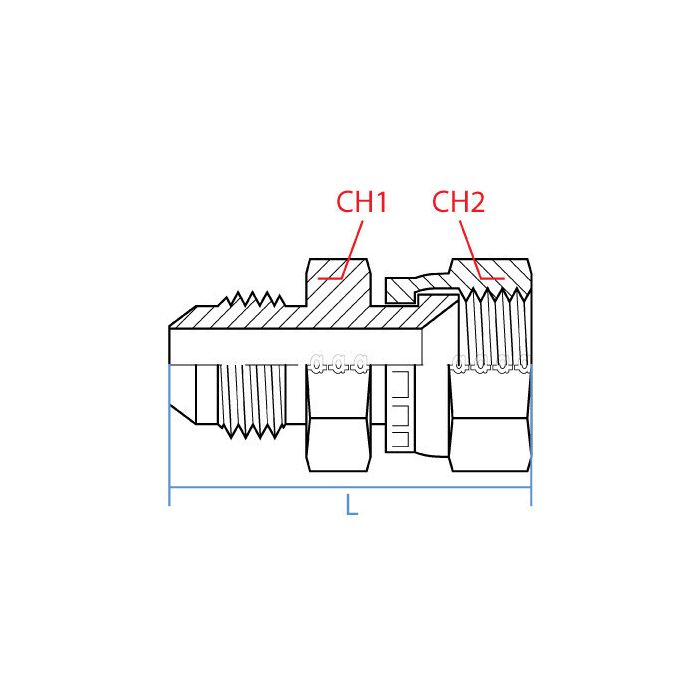

CH1 Width 20mm	CH2 Width 22mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-08-08	Product Weight 0.16 lbs

Product Questions & Answers (3)

Question by: Wade H on Oct 30, 2025, 3:47 PM

Got a hose that wants to twist up every time I go to hook it in, would something like this swivel fitting fix that problem?

Answer by: Customer Support on Nov 1, 2025, 6:47 AM

That's the kind of situation this fitting handles. The female end rotates independently, so when you're threading the connection in, the hose doesn't have to spin with it. That rotational freedom keeps tension and twist from building up during installation or any time you reposition the line. Both ends are 3/4-16 UNF, so as long as you're working with 1/2" JIC fittings on both sides, it'll drop right in without needing any size adapters.

Question by: Kurt R on Sep 6, 2025, 6:52 PM

What size are the threads on this swivel fitting?

Answer by: Customer Support on Sep 8, 2025, 3:20 PM

The threads on both ends of this JIC swivel are 3/4-16 UNF, which are the same size.

Question by: Travis H on Sep 23, 2025, 8:23 AM

trying to swap out an adapter on a hose, is this one 1/2 jic on both ends or is it mixed?

Answer by: Customer Support on Sep 24, 2025, 7:33 PM

Both ends are 1/2 inch JIC with the same 3/4-16 UNF thread callout. One side is male JIC and the other side is a female JIC swivel, so it mates to a same size JIC flare connection without changing thread size.
