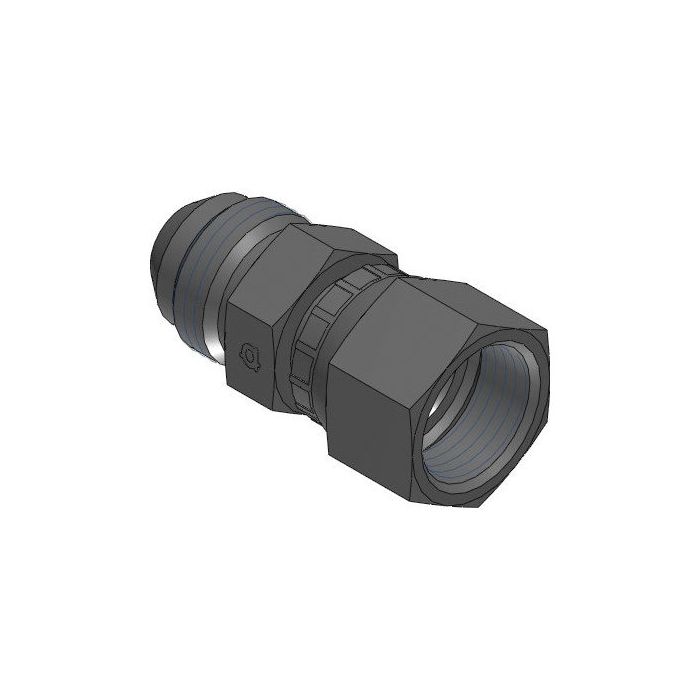

Male Jic X Female Jic Swivel

Ask A Question

Description & Features

The Male JIC X Female JIC Swivel adapter offers reliable connection solutions for hydraulic systems. Constructed from durable steel, this straight-shaped adapter ensures longevity and optimal performance in demanding environments. Designed with precision, both ends feature a 7/8 - 14 UNF thread size, with the male side designated as 5/8" JIC and the female side as 5/8" JIC swivel, providing seamless integration into existing setups.

With equal width dimensions of 25mm on both channel sides and an overall length of 54mm, this adapter is ideal for applications requiring robust and stable connections. The Male JIC X Female JIC Swivel is an essential component for ensuring efficient fluid transfer in industrial hydraulic systems, backed by the trusted Adaptall brand known for quality and precision engineering.

SKU: 9020-10-10

Supplier Part Number (MPN): 9020-10-10

Specifications

Brand
adapt-all
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female JIC Swivel
Dimension Standards
SAE J514
Dimensions
53 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9020 Series
Thread Size
7/8-14

Product Questions & Answers (3)

Question by: Randy T on May 6, 2025, 8:17 PM
Will this here fitting hold up alright in a hydraulic system running about 2500 psi? Don't want no leaks!
Answer by: Customer Support on May 8, 2025, 7:08 AM
Constructed from durable steel, this adapter should provide a robust connection for hydraulic systems. It's designed for demanding environments where reliable fluid transfer is essential.
Question by: Rick M on Jul 7, 2025, 8:44 AM
Got a fitting that keeps wanting to rotate on me mid-line, would swapping in a male JIC to female JIC swivel fix that kind of problem?
Answer by: Customer Support on Jul 8, 2025, 7:06 PM
A swivel on the female end is exactly what handles that situation. The female side of this fitting is designed to rotate freely, which lets you make up a connection without twisting the hose or locking yourself into one orientation. Both sides are 5/8" JIC on a 7/8-14 UNF thread, so as long as your existing fittings match that spec, you can drop this in and take the torque stress off your line.
Question by: Lee L on Sep 3, 2025, 9:09 AM
trying to swap an adapter out, are both ends on this one 7/8-14 UNF and 5/8 JIC?
Answer by: Customer Support on Sep 5, 2025, 6:26 AM
Both sides are JIC with a 7/8 - 14 UNF thread callout, sized as 5/8 inch. One end is male JIC and the other is a female JIC swivel.
