Male Jic X Female Jic Swivel

Description & Features

Engineered from robust steel, this hydraulic fitting ensures durability and reliability in demanding industrial environments. The Male JIC X Female JIC Swivel features a straight design, facilitating seamless integration within hydraulic systems. With connection sizes of 3/4" on both ends and a thread callout of 1-1/16 - 12 UN, it offers precise fitment and secure sealing, minimizing the risk of leaks.

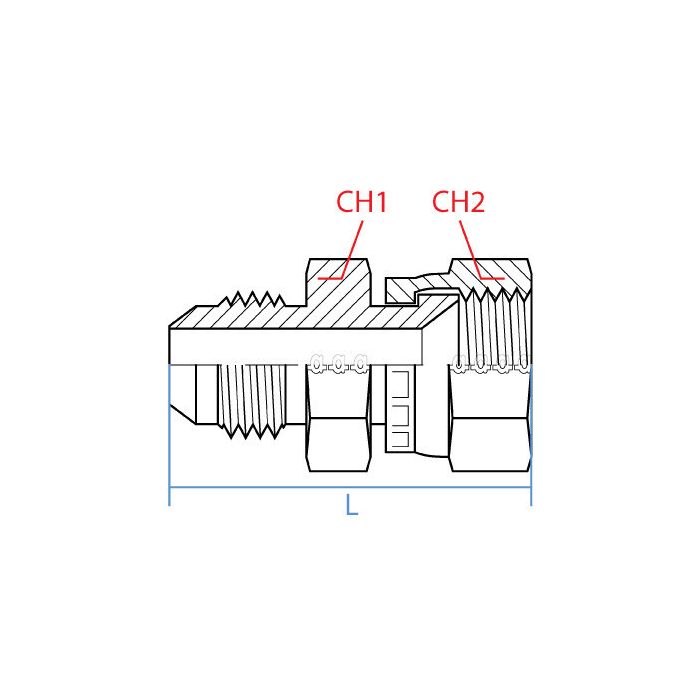

This Adaptall fitting is designed with specific wrench widths, measuring 28.5mm on the male side and 32mm on the female side, aiding in easy installation and maintenance. Its swivel design enhances flexibility and adaptability in applications where movement or vibration is a factor. This makes it ideal for use in various industrial sectors where reliable hydraulic connections are crucial.

SKU: 9020-12-12

Supplier Part Number (MPN): 9020-12-12

Specifications

Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female JIC Swivel	Dimension Standards SAE J514	Dimensions 60.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9020 Series	Thread Size 1-1/16-12

Product Questions & Answers (2)

Question by: Dean C on Jan 2, 2026, 10:43 AM

got a hose with a 3/4 JIC end already, will this let me hook it to another 3/4 JIC and still have a swivel on one side?

Answer by: Customer Support on Jan 4, 2026, 6:23 AM

For tying two same-size JIC ends together, this fitting is a straight male JIC to female JIC swivel, both 3/4 inch with 1-1/16 - 12 UN threads. The female side swivels, so you can make up the connection without having to spin the hose or tube around.

Question by: Pete B on Jan 29, 2026, 2:50 PM

both ends are 3/4 JIC on this thing? just want to make sure before i order cause i've been burned before getting the wrong size

Answer by: Customer Support on Jan 30, 2026, 5:35 PM

both sides are 3/4" with a 1-1/16 - 12 UN thread on each end. Male JIC on one side, female JIC on the other. Same size all the way through, so if your line and port are both 3/4" JIC, this one fits the bill without any adapting between different sizes.
