Male Jic X Female Jic Swivel

Ask A Question

Description & Features

This straight steel fitting is a male JIC to female JIC swivel.

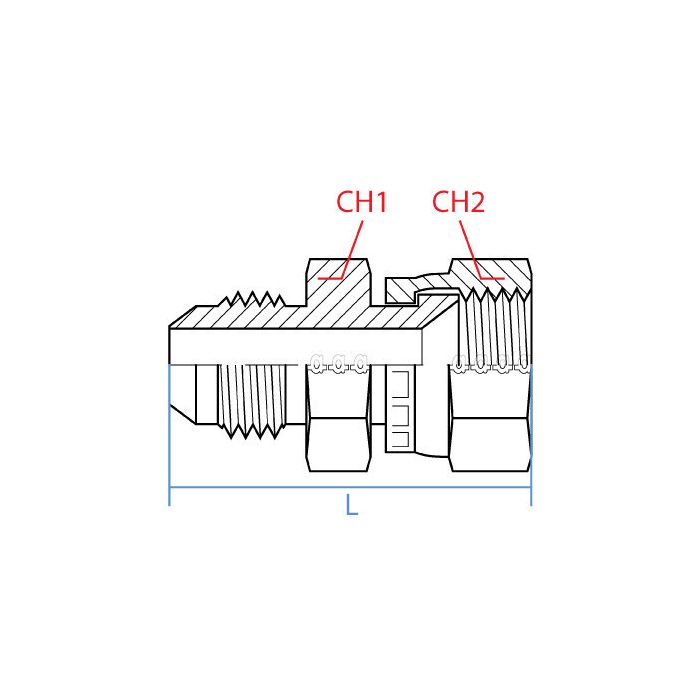

It features a 3/4" male JIC side with a 1-1/16 - 12 UN callout and a 1" female JIC side with a 1-5/16 - 12 UN callout. The Adaptall Male JIC X Female JIC Swivel has a Ch1 width of 32mm and a Ch2 width of 38mm. Its Adaptall L Length is 62mm.

SKU: 9020-12-16

Supplier Part Number (MPN): 9020-12-16

Specifications

Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female JIC Swivel
Dimension Standards
SAE J514
Dimensions
62 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
32 x 38 mm
Material
Steel
Material Construction
Carbon Steel
Series
9020 Series
Thread Size
1-5/16-12 x 1-1/16-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Ricky M on Nov 12, 2025, 6:04 PM
trying to hook a 3/4 JIC line to a 1 inch JIC port, is this the right adapter?
Answer by: Customer Support on Nov 14, 2025, 10:13 AM
For that size step, it matches what you described. Side 1 is a 3/4 inch male JIC with a 1-1/16 - 12 UN thread callout, and side 2 is a 1 inch female JIC swivel with a 1-5/16 - 12 UN callout.
Question by: Chad S on May 22, 2025, 11:53 AM
What size is the male end on this fitting? I need to make sure it'll fit my setup.
Answer by: Customer Support on May 23, 2025, 3:10 PM
The male JIC side is 3/4" with a 1-1/16 - 12 UN callout.
