Male Jic X Female Jic Swivel

Description & Features

Constructed from steel in a straight configuration, this 1" Male Jic X Female Jic Swivel provides a same-size, same-type inline connection with the added flexibility of a swivel on the female end. Both sides carry a 1-5/16-12 UN thread form, making this a like-for-like fitting suited to inline hydraulic line assemblies where rotational adjustment is needed during installation or servicing.

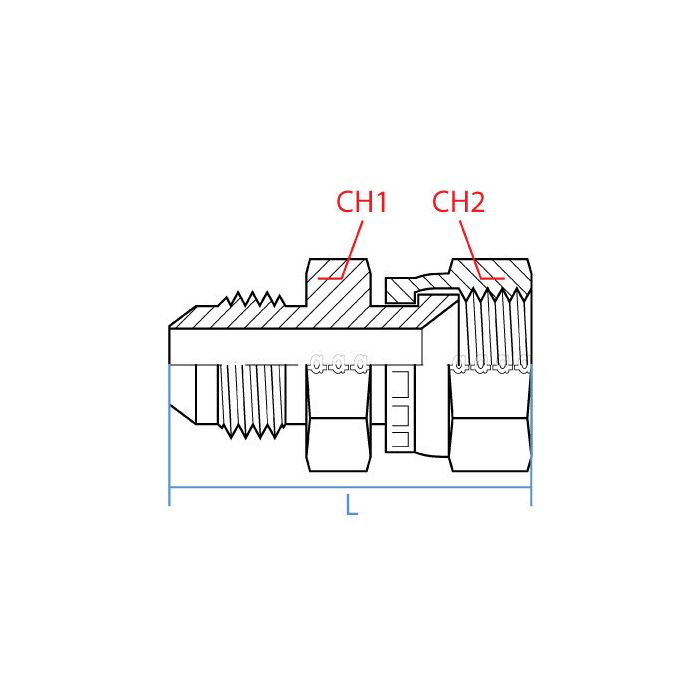

Manufactured by Adaptall, the fitting measures 64.5mm in overall length, with wrench flats of 35mm on side one and 38mm on side two. The swivel function allows the female JIC end to rotate freely before final torque, reducing the risk of line twist in assembled hydraulic circuits. Steel construction suits general-purpose hydraulic service across a broad range of industrial equipment and fluid power systems.

SKU: 9020-16-16

Supplier Part Number (MPN): 9020-16-16

Specifications

Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female JIC Swivel, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female JIC Swivel	Dimension Standards SAE J514	Dimensions 63 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9020 Series	Thread Size 1-5/16-12

Product Questions & Answers (1)

Question by: Dustin E on Jul 1, 2025, 7:22 PM

Both ends on this thing are the same size and thread, right? Just want to make sure I ain't gonna have a mismatch when I go to hook it up inline.

Answer by: Customer Support on Jul 3, 2025, 7:16 AM

Both sides are identical on thread size and type. You've got 1-5/16-12 UN on the male end and the same 1-5/16-12 UN on the female swivel end, so there's no size change or thread conversion happening here. It's a straight, same-size inline fitting meant to connect two JIC lines of the same spec without any adaptation.
