Male Bspp X Female Jic Swivel

Description & Features

This straight Adaptall fitting is a male BSPP X Female JIC Swivel. The BSPP end features a 1/4" size with a G 1/4 - 19 callout. The JIC end features a 3/8" size with a 9/16 - 18 UNF callout.

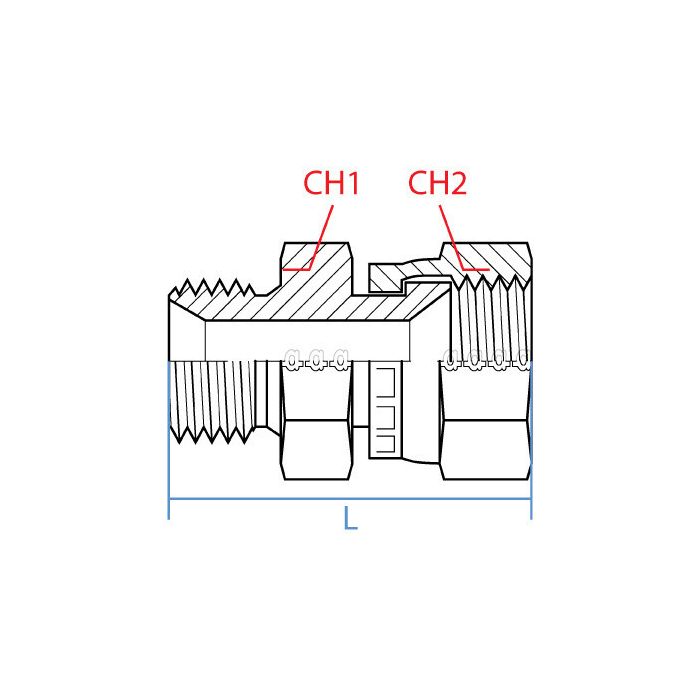

This steel fitting has a Ch1 Width of 19mm, a Ch2 Width of 19mm, and an L Length of 38mm.

SKU: 9021-04-06

Supplier Part Number (MPN): 9021-04-06

Specifications

Connection Size 1 1/4 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female JIC Swivel	Dimension Standards BS 5200, SAE J514	Dimensions 38 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 9021 Series	Thread Size 9/16-18 x 1/4-19

Product Questions & Answers (1)

Question by: Steve R on Jan 15, 2026, 12:05 PM

Will this fitting work for connecting a 1/4" BSPP male to a 3/8" JIC female line? Just makin' sure before I order.

Answer by: Customer Support on Jan 16, 2026, 12:34 PM

This straight Adaptall fitting is designed to adapt exactly that, a 1/4" BSPP male connection to a 3/8" JIC female swivel.
