Male Bspp X Female Jic Swivel

Description & Features

Constructed from durable steel, this Male BSPP x Female JIC Swivel adapter is designed for robust industrial applications requiring reliable fluid connectivity. Its straight shape ensures ease of installation, while the G 3/8 - 19 male BSPP threads and 7/16 - 20 UNF female JIC threads offer versatile compatibility with a range of hydraulic systems. With a compact overall length of 36mm, this adapter is ideal for tight spaces, ensuring secure connections without compromising performance.

The adapter is manufactured by Adaptall, a trusted name in industrial components, guaranteeing high-quality materials and precise engineering. The 22mm and 17mm width on the respective connection points ensure a snug fit, reducing the risk of leaks in high-pressure environments. This adapter is suitable for use in a variety of hydraulic applications where both BSPP and JIC connections are required.

SKU: 9021-06-04

Supplier Part Number (MPN): 9021-06-04

Specifications

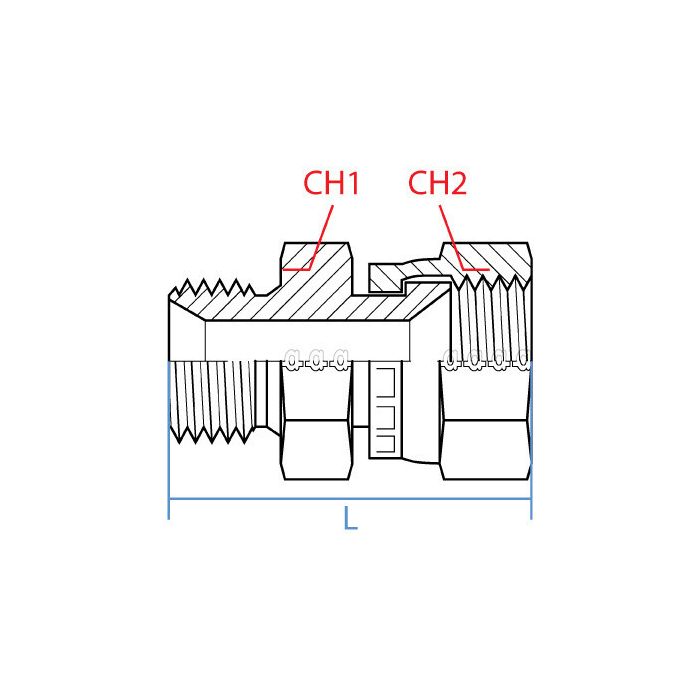

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 1/4 in	Connection Type Female JIC Swivel, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female JIC Swivel	Dimension Standards BS 5200, SAE J514	Dimensions 38.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 17 x 22 mm	Material Steel	Material Construction Carbon Steel	Series 9021 Series	Thread Size 3/8-19 x 7/16-20

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
9021-08-06 Male BSPP To Female JIC Adapter	1/2 in	3/8 in	1/2-14 x 9/16-18
9021-06-06 Male BSPP To Female JIC Adapter	3/8 in	3/8 in	9/16-18 x 3/8-19
9021-04-04 Male BSPP To Female JIC Adapter	1/4 in	1/4 in	7/16-20 x 1/4-19
9021-08-08 Male BSPP To Female JIC Adapter	1/2 in	1/2 in	3/4-16 x 1/2-14
9021-02-04	1/8 in	1/4 in	7/16-20 x 1/8-28
9021-04-05	1/4 in	5/16 in	1/2-20 x 1/4-19
9021-04-06	1/4 in	3/8 in	9/16-18 x 1/4-19
9021-06-08	3/8 in	1/2 in	3/4-16, 3/8-19
9021-08-10	1/2 in	5/8 in	1/2-14 x 7/8-14
9021-08-12	1/2 in	3/4 in	1-1/16-12 x 1/2-14
9021-10-08	5/8 in	1/2 in	5/8-14 x 3/4-16
9021-10-10	5/8 in	5/8 in	5/8-14 x 7/8-14
9021-10-12	5/8 in	3/4 in	5/8-14 x 1-1/16-12
9021-12-08	3/4 in	1/2 in	3/4-16 x 3/4-14
9021-12-10	3/4 in	5/8 in	3/4-14, 7/8-14
9021-12-12	3/4 in	3/4 in	1-1/16-12 x 3/4-14
9021-12-16	3/4 in	1 in	3/4-14, 1-5/16-12
9021-16-12	1 in	3/4 in	1-1/16-12 x 1-11
9021-16-16	1 in	1 in	1-5/16-12 x 1-11
9021-16-20	1 in	1-1/4 in	1-5/8-12 x 1-11
9021-20-16	1-1/4 in	1 in	1-5/16-12, 1-1/4-11
9021-20-20	1-1/4 in	1-1/4 in	1-1/4-11 x 1-5/8-12
9021-24-24	1-1/2 in	1-1/2 in	1-7/8-12 x G1-1/2-11

Product Questions & Answers (2)

Question by: Vince M on Apr 18, 2025, 3:10 PM

Got a BSPP port on a pump and need to tie into a JIC line, this a straight shot adapter or does it got some kind of angle to it?

Answer by: Customer Support on Apr 20, 2025, 6:10 AM

Straight configuration on this one, no angle. The male end is G 3/8-19 BSPP and the female JIC end is 7/16-20 UNF, so it goes in line without any change in direction. Overall length is 36mm, which keeps things pretty compact if you're working in a tight spot. The female JIC side swivels, so you get some flexibility when you're torquing everything down without twisting up your line.

Question by: Earl W on Oct 11, 2025, 7:21 PM

trying to hook a BSPP port to a JIC hose, is this the right adapter size or am i off a step

Answer by: Customer Support on Oct 13, 2025, 7:13 AM

For matching up those two thread styles, this adapter is a straight Male BSPP to Female JIC swivel. Side 1 is a G 3/8 - 19 male BSPP thread, and side 2 is a 7/16 - 20 UNF female JIC thread, which is the common 1/4 inch JIC size.
