Male Bspp X Female Jic Swivel

Description & Features

Constructed from steel in a straight configuration, this Male BSPP X Female JIC Swivel provides a reliable threaded connection between BSPP and JIC hydraulic line fittings. The male side features a G 3/8-19 BSPP thread (3/8" size), while the female swivel end accepts a 3/4-16 UNF JIC thread (1/2" size), making it well suited for joining hydraulic circuits where these two thread standards meet.

Manufactured by Adaptall, the fitting measures 42mm in overall length with 22mm wrench flats on both ends for straightforward installation. The swivel design on the female JIC side allows for rotational adjustment during assembly, helping to reduce stress on connected lines. With a compact straight body and consistent steel construction, this fitting is a practical choice for mobile hydraulic equipment, industrial machinery, and fluid power systems requiring a BSPP-to-JIC transition.

SKU: 9021-06-08

Supplier Part Number (MPN): 9021-06-08

Specifications

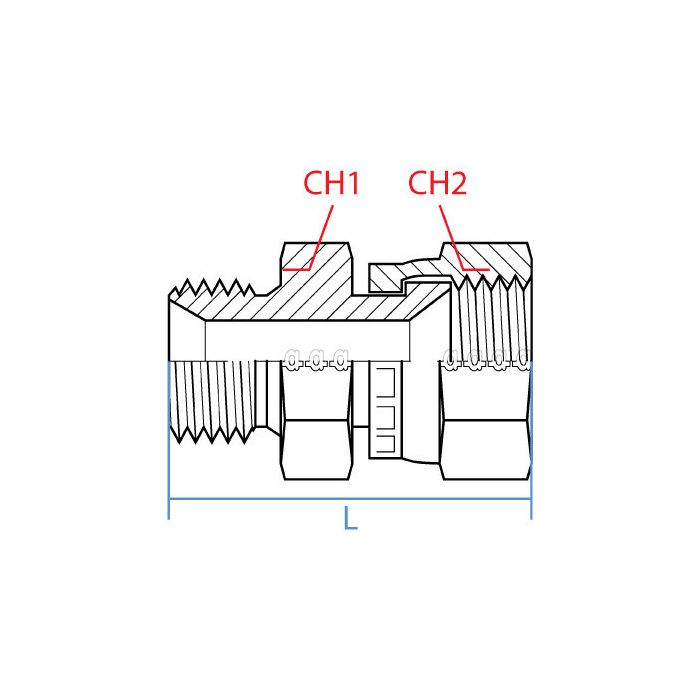

CH1 Width 22mm	CH2 Width 22mm	L Length 42mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-06-08	Product Weight 0.15 lbs

Product Questions & Answers (3)

Question by: Wes C on Jul 15, 2025, 6:01 PM

So this here fitting has a swivel on one end? Just wanna make sure I'm readin' it right.

Answer by: Customer Support on Jul 17, 2025, 9:25 AM

Yes sir, that female JIC side does swivel. It lets you rotate things during assembly so you don't put too much stress on your lines.

Question by: Diane W on Jun 15, 2025, 3:45 PM

Got a machine running BSPP ports on the pump side and JIC fittings on the lines, will this adapter bridge that gap without needing extra pieces in between?

Answer by: Customer Support on Jun 17, 2025, 9:29 AM

That's exactly the job this fitting handles. The male end threads into a G 3/8-19 BSPP port, and the female swivel end accepts a 3/4-16 UNF JIC fitting, so you're connecting those two thread standards directly with one piece. No extra unions or adapters needed in between.

Question by: Marvin T on Jan 13, 2026, 3:13 PM

got a hose end with a 3/4-16 jic on it. is this the piece that’ll swivel onto that and then thread into a G 3/8-19 port?

Answer by: Customer Support on Jan 15, 2026, 6:14 AM

For that setup, it matches: the female end is a 3/4-16 UNF JIC swivel (1/2 inch size) and the male end is G 3/8-19 BSPP (3/8 inch size). It is a straight steel adapter, so it is meant to bridge a JIC connection over to a BSPP threaded port.
