Male Bspp X Female Jic Swivel

Description & Features

This straight Adaptall fitting is a male BSPP X Female JIC Swivel, manufactured from steel for durability. It adapts from a G 1/2 - 14 BSPP male connection to a 3/4" JIC female swivel.

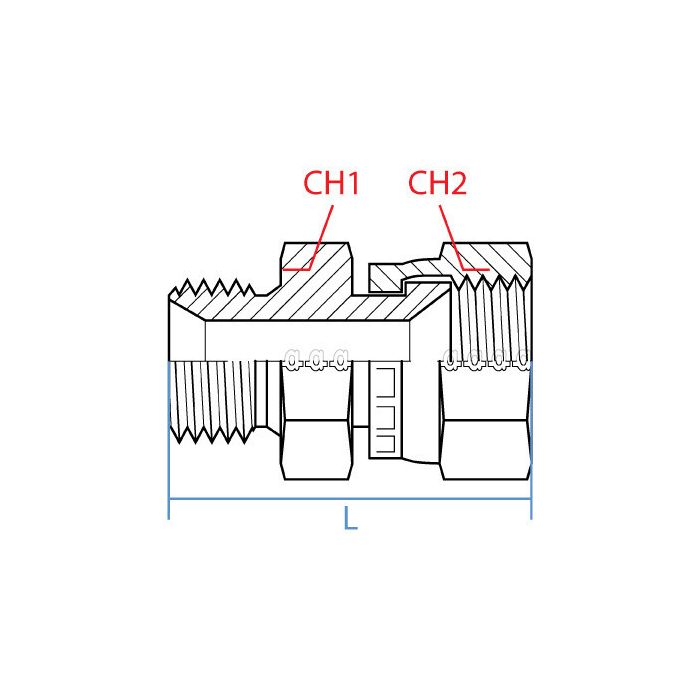

The Adaptall Ch1 width is 27mm, and the Adaptall Ch2 width is 32mm. The Adaptall L length is 53mm.

SKU: 9021-08-12

Supplier Part Number (MPN): 9021-08-12

Specifications

Connection Size 1 1/2 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female JIC Swivel	Dimension Standards BS 5200, SAE J514	Dimensions 52 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9021 Series	Thread Size 1-1/16-12 x 1/2-14

Product Questions & Answers (1)

Question by: Shane B on Oct 22, 2025, 10:08 AM

got a hose end with a 3/4 JIC female swivel, what does the other side of this adapter screw into?

Answer by: Customer Support on Oct 23, 2025, 11:11 AM

On the BSPP side, it’s a G 1/2 - 14 male thread, so it screws into a matching G 1/2 - 14 BSPP female port.
