Male Bspp X Female Jic Swivel

Description & Features

Constructed from steel in a straight configuration, this Male BSPP X Female JIC Swivel provides a reliable thread transition between G 5/8-14 BSPP (male) and 3/4-16 UNF JIC (female swivel) connections. The 5/8" BSPP side mates with metric-threaded hydraulic ports common in European and international equipment, while the 1/2" JIC female swivel end accommodates standard 37-degree flare fittings used widely in North American hydraulic systems.

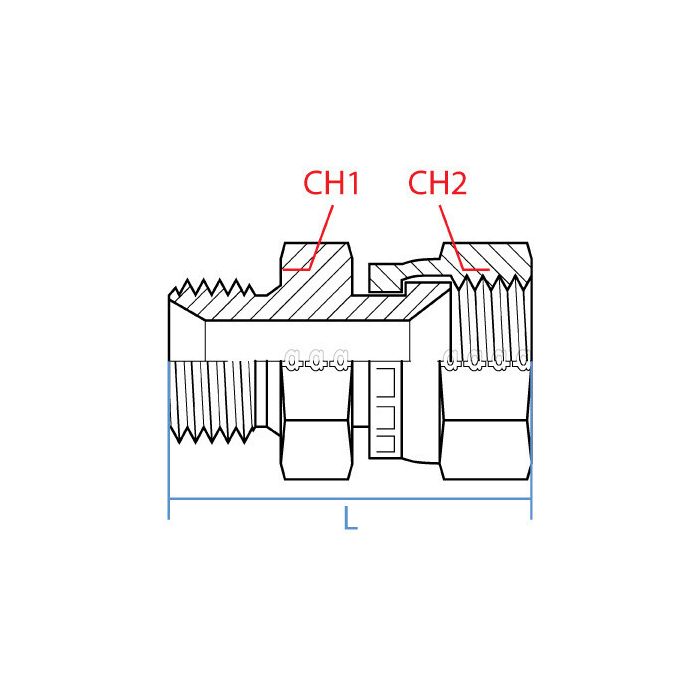

Manufactured by Adaptall, the fitting measures 49mm in overall length with a 30mm wrench flat on the BSPP side and 24mm on the JIC side, making it straightforward to install and torque correctly in-line. The swivel design on the JIC end allows hose or tube assemblies to be positioned without twisting during installation. This adapter is well suited for cross-standard hydraulic circuit connections where BSPP-ported components interface with JIC-terminated hose assemblies.

SKU: 9021-10-08

Supplier Part Number (MPN): 9021-10-08

Specifications

CH1 Width 30mm	CH2 Width 24mm	L Length 49mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 5/8 - 14	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Bspp	Side 2 Callout 3/4 - 16 UNF	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-10-08	Product Weight 0.20 lbs

Product Questions & Answers (1)

Question by: Rusty F on Jan 22, 2026, 8:24 PM

Got a European-made hydraulic unit with BSPP ports and I'm trying to tie it into my JIC hose lines. This the right fitting for that?

Answer by: Customer Support on Jan 24, 2026, 3:10 PM

Connecting BSPP-ported equipment to JIC hose assemblies is exactly what this adapter handles. The male end is G 5/8-14 BSPP, which threads into metric hydraulic ports common on European and international machinery. The other end is a 3/4-16 UNF female JIC swivel that accepts standard 37-degree flare fittings used across North American hydraulic systems. Steel construction and a straight configuration keep the transition clean and in-line.
