Male Bspp X Female Jic Swivel

Description & Features

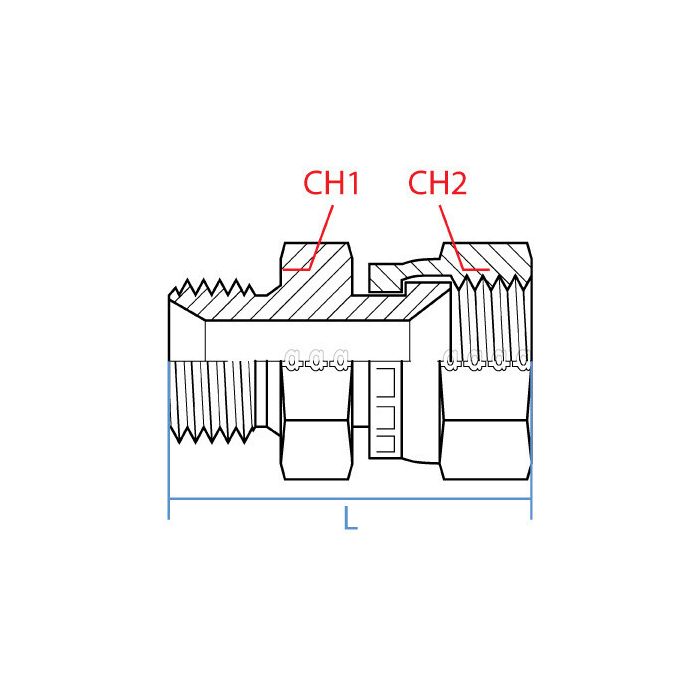

This straight Male BSPP X Female JIC Swivel is constructed of steel for durability. It features a 5/8" male BSPP Side 1 with G 5/8 - 14 callout and a 3/4" female JIC Side 2 with 1-1/16 - 12 UN callout.

This Adaptall fitting has a Side 1 width of 28mm and a Side 2 width of 32mm, with an overall length of 58mm.

SKU: 9021-10-12

Supplier Part Number (MPN): 9021-10-12

Specifications

Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female JIC Swivel	Dimension Standards BS 5200, SAE J514	Dimensions 56.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9021 Series	Thread Size 5/8-14 x 1-1/16-12

Product Questions & Answers (1)

Question by: Diane W on Oct 1, 2025, 7:14 AM

Got a hydraulic line coming off a British-made pump with a G 5/8-14 port, and I need to tie into a JIC fitting on the other end. This the right adapter for that?

Answer by: Customer Support on Oct 3, 2025, 6:31 AM

That setup is exactly what this fitting handles. The male end threads into a G 5/8-14 BSPP port, and the female JIC swivel on the other end accepts a 1-1/16-12 UN male JIC fitting. The swivel design on the JIC side lets you position the mating line without twisting it during tightening, which makes assembly a lot cleaner in tight spaces.
