Male Bspp X Female Jic Swivel

Ask A Question

Description & Features

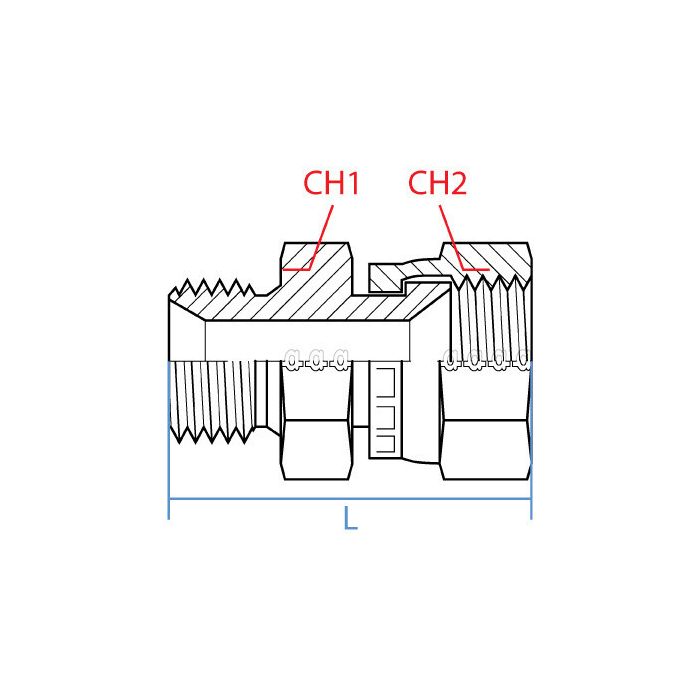

This steel straight fitting adapts between BSPP and JIC connections. It features a 3/4" male BSPP Side 1 with G 3/4 - 14 callout and a 1" female JIC Side 2 with 1-5/16 - 12 UN callout.

This Adaptall Male BSPP X Female JIC Swivel has a Side 1 wrench flat of 35mm and a Side 2 wrench flat of 38mm. Its overall length (L) is 61mm.

SKU: 9021-12-16

Supplier Part Number (MPN): 9021-12-16

Specifications

Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Male BSP
Connection Type 1
Male BSPP
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
60 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9021 Series
Thread Size
3/4-14, 1-5/16-12

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Johnny W on Jan 14, 2026, 6:23 PM
got a hose end that’s G 3/4 - 14 BSPP male on one side and i need to hook it to a 1 inch JIC line, is this the right adapter?
Answer by: Customer Support on Jan 16, 2026, 4:54 PM
For tying those two standards together, it’s a straight steel adapter with a 3/4 inch male BSPP side called out as G 3/4 - 14, and a 1 inch female JIC swivel side called out as 1-5/16 - 12 UN.
Question by: Bobby E on Aug 14, 2025, 1:09 PM
Got a machine running JIC fittings on the hydraulic lines and the pump port is BSPP, this the right piece to bridge that gap?
Answer by: Customer Support on Aug 15, 2025, 1:41 PM
Yeah, that's exactly what this fitting is built for. One end is a 3/4" male BSPP with a G 3/4-14 thread, and the other end is a 1" female JIC swivel with a 1-5/16-12 UN thread. Straight configuration, steel construction, so it'll hold up in a working hydraulic setup without any adapters stacked on top of it.
