Male Bspp X Female Jic Swivel

Description & Features

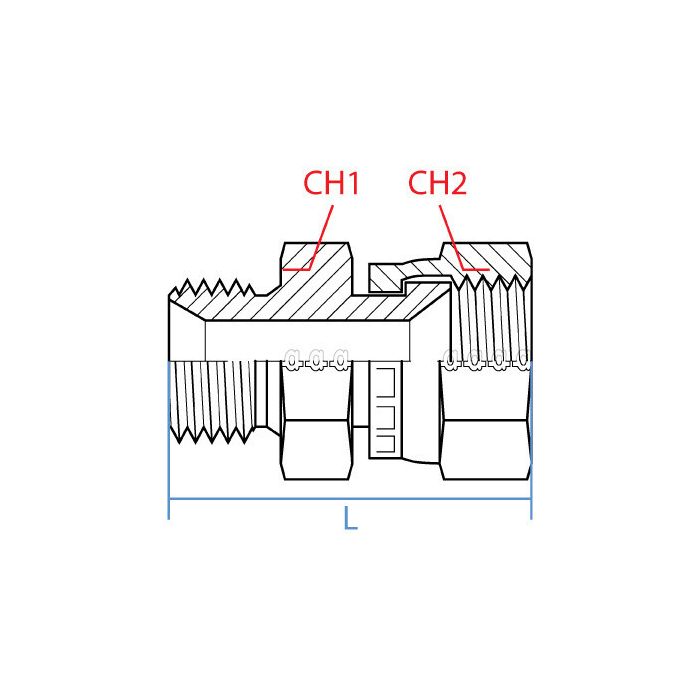

Designed for seamless integration in hydraulic systems, this Male BSPP x Female JIC Swivel offers reliable performance and durability. Constructed from high-quality steel, this straight connector ensures robust connections between G 1 - 11 BSPP male threads and 1-5/16 - 12 UN JIC female fittings. The product's dimensions include an Adaptall CH1 width of 41mm, CH2 width of 38mm, and a total length of 62mm, making it suitable for a variety of industrial applications where secure and efficient fluid transfer is critical.

Manufactured by Adaptall, this swivel fitting is engineered to facilitate easy assembly and disassembly, minimizing downtime during maintenance. The precision-cut threads and swivel design enhance adaptability and reduce the risk of leaks, ensuring consistent performance in demanding environments. This connector is essential for industries requiring precise hydraulic connections with flexibility and reliability.

SKU: 9021-16-16

Supplier Part Number (MPN): 9021-16-16

Alternate Part Numbers: 3402-16-16

Specifications

CH1 Width 41mm	CH2 Width 38mm	L Length 62mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspp	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Alternate Part Numbers Alternate Part Number 3402-16-16	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9021-16-16	Product Weight 0.65 lbs

Product Questions & Answers (3)

Question by: Dwight S on Dec 16, 2025, 9:17 AM

Got a line running G 1 BSPP on one end and JIC fittings on the other, will this adapter bridge that gap without needing extra pieces in between?

Answer by: Customer Support on Dec 17, 2025, 8:14 PM

That's what this fitting handles. One side is a G 1-11 BSPP male thread, and the other is a 1-5/16-12 UN JIC female swivel, so it connects those two thread types directly in a single piece. No additional adapters needed in most setups like that.

Question by: Sheila M on Mar 25, 2026, 6:49 PM

got a hose end that’s 1-5/16 - 12 UN JIC female. is this the right swivel to mate up to a G 1 - 11 BSPP male port?

Answer by: Customer Support on Mar 26, 2026, 7:30 PM

Match the thread callouts and it lines up. This connector is a straight Male BSPP on one side (G 1 - 11, 1 inch, male) and a Female JIC swivel on the other (1-5/16 - 12 UN, 1 inch, female), so it is meant to join those two thread types together.

Question by: Earl D on Jul 11, 2025, 12:31 PM

What size is the Bspp male end on this fitting? I need to make sure it'll match up with my existing setup.

Answer by: Customer Support on Jul 12, 2025, 3:29 PM

It's made to fit a G 1 - 11 Bspp male thread, which is a 1-inch size.
