Male Bspp X Female Jic Swivel

Description & Features

This steel straight Male Bspp X Female Jic Swivel Adaptall fitting features a 1" Bspp male connection with a G 1 - 11 callout on Side 1, and a 1-1/4" Jic female connection with a 1-5/8 - 12 UN callout on Side 2.

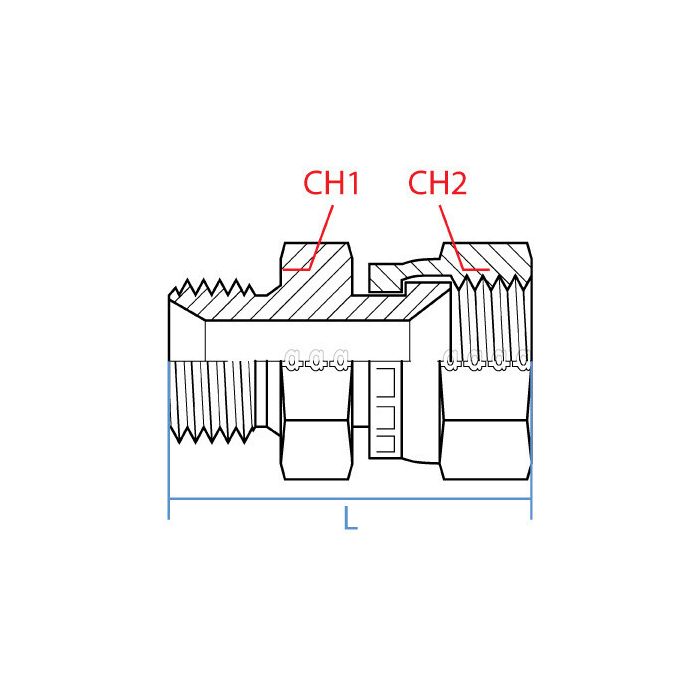

The Adaptall Ch1 width is 41mm, and the Adaptall Ch2 width is 51mm, with an Adaptall L length of 64mm.

SKU: 9021-16-20

Supplier Part Number (MPN): 9021-16-20

Specifications

Connection Size 1 1 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Male BSP	Connection Type 1 Male BSPP	Connection Type 2 Female JIC Swivel	Dimension Standards BS 5200, SAE J514	Dimensions 64 mm L	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9021 Series	Thread Size 1-5/8-12 x 1-11

Product Questions & Answers (1)

Question by: Janet G on Jun 11, 2025, 9:57 AM

What size wrench do I need for the bigger end of this fitting?

Answer by: Customer Support on Jun 13, 2025, 6:29 AM

According to the specs, the Adaptall Ch2 width, which is the larger side, is 51mm. So, you'll need a wrench sized accordingly.
