Male Bspp X Female Jic Swivel

Ask A Question

Description & Features

This straight Adaptall fitting is a male Bspp X Female Jic Swivel, suitable for connecting hydraulic lines with different thread types.

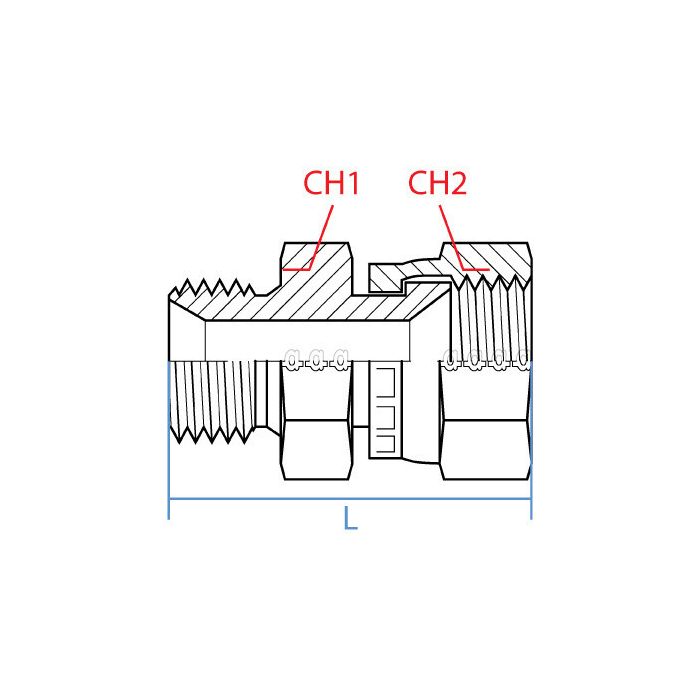

The Bspp side has a G 1-1/4 - 11 thread, while the JIC side features a 1-5/16 - 12 UN thread. This steel fitting has a Side 1 size of 1-1/4" and a Side 2 size of 1". Adaptall Ch1 Width: 50mm. Adaptall Ch2 Width: 38mm. Adaptall L Length: 67mm.

SKU: 9021-20-16

Supplier Part Number (MPN): 9021-20-16

Specifications

Connection Size 1
1-1/4 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Male BSP
Connection Type 1
Male BSPP
Connection Type 2
Female JIC Swivel
Dimension Standards
BS 5200, SAE J514
Dimensions
61 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Series
9021 Series
Thread Size
1-5/16-12, 1-1/4-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Scott E on May 28, 2025, 7:47 PM
Will this fitting hold up okay outside? I'm hooking up a hydraulic log splitter and it's gotta sit out in the weather.
Answer by: Customer Support on May 30, 2025, 4:03 PM
Steel construction should provide decent corrosion resistance for outdoor use, but keep in mind it's still steel. You might want to consider a rust inhibitor or coating for long-term exposure.
Question by: Larry A on Nov 3, 2025, 4:39 PM
Got a line running G 1-1/4 BSPP on the pump side and need to tie into a 1-5/16-12 JIC female connection on the other end. This fitting gonna bridge that gap straight through?
Answer by: Customer Support on Nov 5, 2025, 6:05 AM
Right thread combo for that exact situation. The male end is a G 1-1/4 - 11 BSPP and the female swivel end is 1-5/16 - 12 UN JIC, so it connects those two thread types in a straight configuration without any additional adapters in between. Steel construction, 67mm end to end, and the swivel on the JIC side gives you a little rotation to help with alignment when you're making up the connection.
