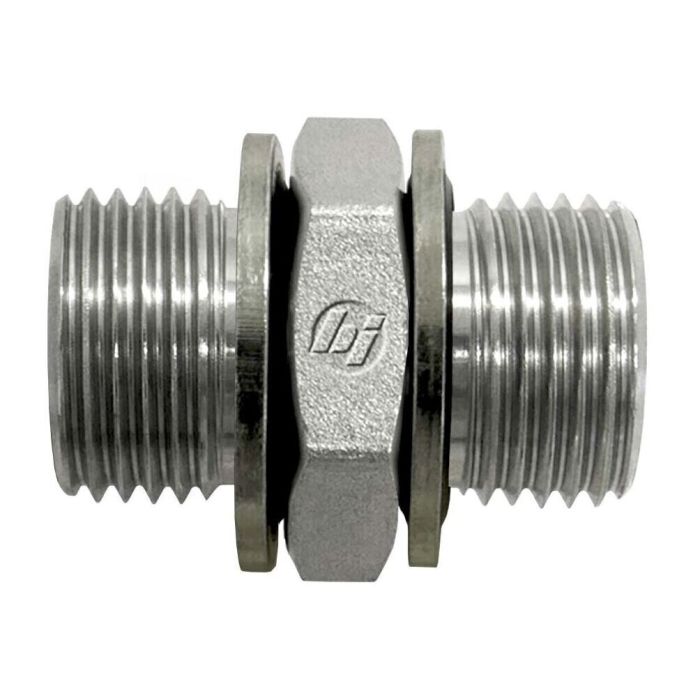

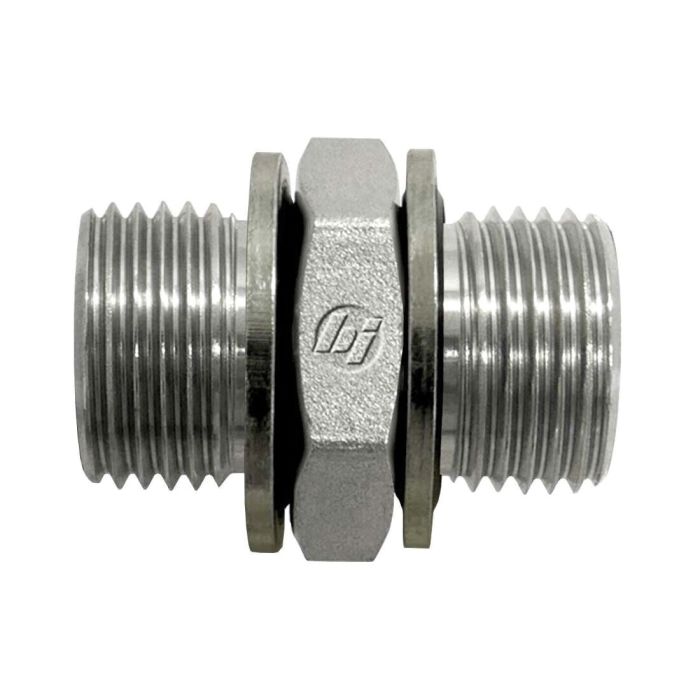

04MBSPP-04MBSPP HEX NIPPLE W/ BND SEALS

Ask A Question

Description & Features

This straight steel hex nipple features male BSPP with 60-degree seat connections on both ends. The 04MBSPP-04MBSPP HEX NIPPLE W/ BND SEALS includes assembled BSPP bonded seals using NBR O-ring seal material.

Each connection has a 1/4-19 thread size and a 6.35 mm thread drill.

SKU: 9022-04-04-BS

Supplier Part Number (MPN): 9022-04-04-BS

Specifications

Brand
BRENNAN
Additional Information
Bonded Seal
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Cone Seat
Connection Type 2
Male BSPP 60 deg Cone Seat
Dimensions
29 mm L
Finish
Zinc Trivalent
Fitting Type
Nipple
Hex Size
3/4 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
5100 psi
Operating Temperature
-40 to 250 deg F
Seam Material
NBR
Series
9022-BS Series
Thread Size
1/4-19

Product Questions & Answers (1)

Question by: Randy C on Oct 17, 2025, 3:41 PM
Hey, I'm just making sure this fitting will work. It says 1/4-19 on both ends – is that right?
Answer by: Customer Support on Oct 19, 2025, 6:21 AM
that's correct. This hex nipple has 1/4-19 male BSPP threads with a 60-degree seat on both ends.
